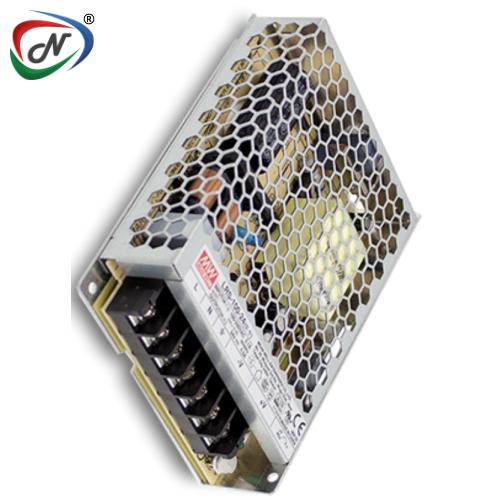

LRS-100-24

LRS-100-24  (AC-DC Single output enclosed power supply Up to 5G vibration;

• 1U low profile
• Universal AC input
• Output 24 Vdc at 4.5A

Main Features:

• It is a single-output enclosed type power supply with 108W capacity and a low-profile design of 30mm.
• The LRS-100-24 is capable of accepting a full range of input voltages from 85 to 264VAC and output voltages of 24V.
• LRS-100-24's metallic mesh case is designed to maximize heat dissipation so that the whole series operates from -30°C to 70°C under air convection without a fan.
• With a power consumption of only .3 Watts at no load, the end system can comfortably meet global energy requirements.
• With the complete protection functions and 5G anti-vibration capability, the LRS-100-24 meets international safety standards such as TUV EN60950-1, EN60335-1, EN61558-1/-2-16, and GB4943.
• The LRS-100-12 power supply is an ideal solution for a wide range of industrial applications due to its high performance-to-price ratio.

 Main Specifications:

·       Part No:  LRS-100-24

·       Unit of Measure: Per Each

·       RoHS: Yes

·       HTS: 8504409510

·       COO: CN

·       ECCN: EAR99

·       Type: Switching, Regulated

·       Style: Enclosed

·       AC Input Voltage: 85 to 264 V

·       Number of Outputs: 1

·       Output Voltage: 24 V

·       Maximum Output Current: 4.5 A

·       Maximum Output Power: 108 W

·       Input Connector Type: Screw Terminal Block

·       Dimension: 129 x 97 x 30 mm
