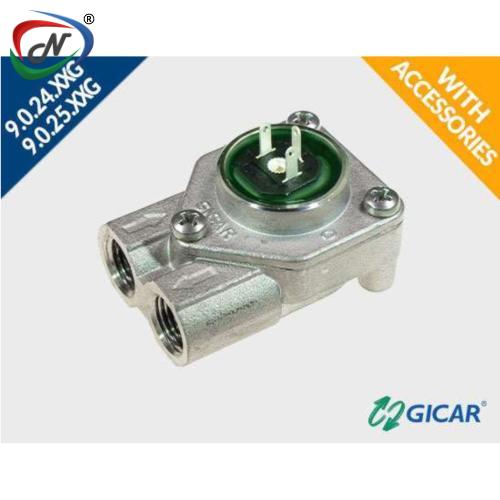

Flow Meter Ruveco Tea

#NSSP000547

Product Description

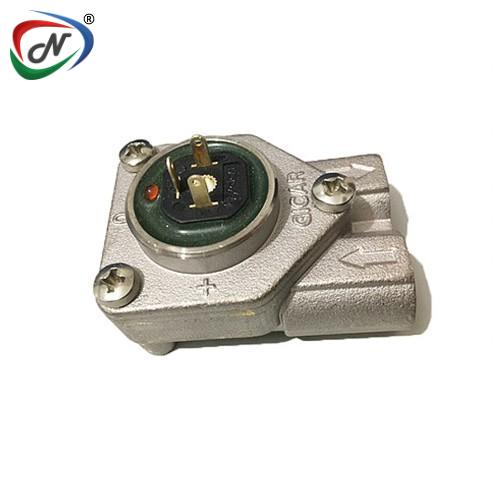

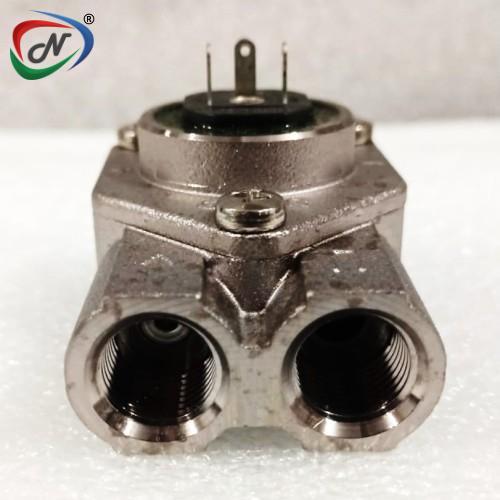

9.0.25.02G FLOW METER RUVECO

FM57RT Ruveco-T.E.A.® metallic models
Ruveco®: Chemical washing process which acts on the lead (lead leaching) accumulated on the brass surface

T.E.A.®: Intermetallic electroplated alloy suitable for food contact

LOW LEAD: Metallic alloy made of CW510L brass with maximum lead content <0.1% (NSF372 compliant)

9.0.25.02G FLOW METER RUVECO

T.E.A. FMRT-C-L G1/4 D.1.15"+OUT-" CONNECTOR +LED

ELECTRICAL FEATURES	Power supply	4,5 ÷ 24VDC
	Max. Consumption	15mA
	Max (external) output voltage	25 VDC
	Max output current	25 mA
	Electrical output	Polarized 2.2 k? without LED - 10 k? with LED - Open Collector
	Output configuration	+ OUT - \| + - OUT \| OUT - +

WORKING CONDITIONS	Mounting Position	Horizontal
	Max pressure	20 bar threaded connections
	Max pressure	John Guest®: 16 bar at 20 °C, 10 bar at 65 °C
	Max temperature	100°C (only for John Guest® model: 65 °C)

MECHANICAL CONFIGURATION	Nozzle diameter	0.57 - 0.7 - 1.0 - 1.1 - 1.15 - 1.3 - 1.5 - 1.8 - 2.0 - 2.5 - 3.7 - 6.0 mm
MECHANICAL CONFIGURATION	Impeller	2 magnets (2M), 4 magnets (4M)
