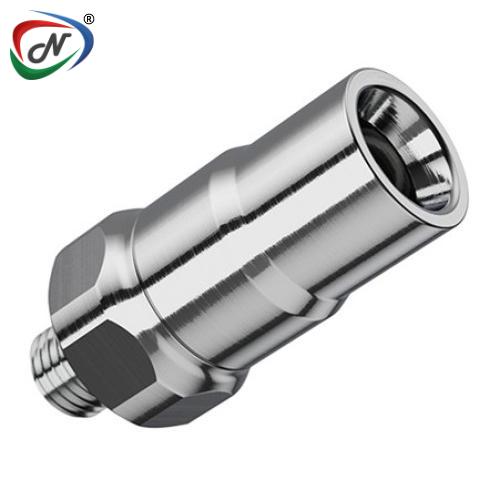

BLQ4D30004 1/4" Blind Mate SAE-04 Valved In-Line Liquid Cooling Coupling Body
#NSSP004688
Product Description
BLQ4D30004
1/4" Blind Mate SAE-04 Valved In-Line Liquid Cooling Coupling Body
Main Features:
- Non-spill design
- Reliable seal when connected
- Non-friction valve
- with high durability
- High axial engagement tolerance
- Single-piece options for body & insert
Main Benefits:
- Extensive protection from contamination and debris
- Designed to serve for a long period of time when connected
- Durable for repeated use over an extended period of time
- Design allows full flow even when not fully engaged
- Enables Disconnection under pressure
- Space saving
Main Specifications:
- Material: Brass
- Material Finish: Chrome
- Pressure Range: Vacuum to 200 psi, 13.8 bar
- Color: Chrome
- Mounting Option: Thread
- Temperature Range: 0°F - 240°F ((-17°C) - 115°C)
- Seal Options: EPDM
- Valve Spring: Stainless Steel
- Valve Option: Valved
- Body Type: Body
- Spillage: SSpillage is < 0.025 cc per disconnect at 0 psi and < 0.055 cc per disconnect rated at 120 psi; Inclusion < 0.025 cc per connect
- Bag Qty: 10
TERMINATION | IN-LINE STRAIGHT THREAD SAE |
TUBING/THREAD SIZE | 1/4 SAE-4: 7/16-201 |
SHUTOFF | BLQ4D30004 |
HEX | 22mm |
A(Height/Diameter) | 0.93 (23.6) |
B (Total Length) | 2.05 (52.1) |
C(Connected length) | 1.64 (41.7) |
All measurements are in inches (millimetres) unless otherwise noted.
Click to download : BLQ4D30004 1/4" Blind Mate SAE-04 Valved In-Line Liquid Cooling Coupling Body Dimensions/DesignMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP004688 |
| Manufacturer Code | BLQ4D30004 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
