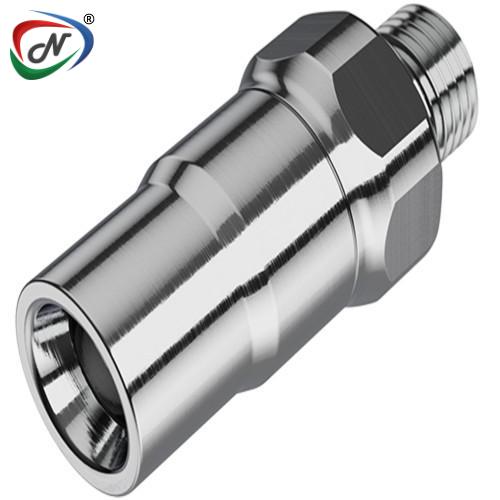

BLQ4D31004 1/4? Blind Mate G 1/4 (BSPP) Valved In-Line Liquid Cooling Coupling Body
#NSSP004691
Product Description
BLQ4D31004
1/4" Blind Mate G 1/4 (BSPP) Valved In-Line Liquid Cooling Coupling Body
Main Features:
- Non-spill design
- Reliable seal when connected
- Non-friction valve
- with high durability
- High axial engagement tolerance
- Single-piece options for body & insert
Main Benefits:
- Extensive protection from contamination and debris
- Designed to serve for a long period of time when connected
- Durable for repeated use over an extended period of time
- Design allows full flow even when not fully engaged
- Enables Disconnection under pressure
- Space saving
Main Specifications:
- Material: Brass
- Material Finish: Chrome
- Pressure Range: Vacuum to 200 psi, 13.8 bar
- Color: Chrome
- Mounting Option: Thread
- Temperature Range: 0°F - 240°F ((-17°C) - 115°C)
- Seal Options: EPDM
- Valve Spring: Stainless Steel
- Valve Option: Valved
- Body Type: Body
- Spillage: Spillage is < 0.025 cc per disconnect at 0 psi and < 0.055 cc per disconnect rated at 120 psi; Inclusion < 0.025 cc per connect
- Bag Qty: 10
TERMINATION | IN-LINE STRAIGHT THREAD G / BSPP |
TUBING/THREAD SIZE | G 1/4 (BSPP)2 |
SHUTOFF | BLQ4D31004 |
HEX | 22mm |
A(Height/Diameter) | 0.93 (23.6) |
B (Total Length) | 2.11 (53.6) |
C(Connected length) | 1.70 (43.2) |
*All measurements are in inches (millimetres) unless otherwise noted.
Click to download : BLQ4D31004 1/4? Blind Mate G 1/4 (BSPP) Valved In-Line Liquid Cooling Coupling Body Dimensions/Design Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP004691 |
| Manufacturer Code | BLQ4D31004 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
