BCF597 5/32

#NSSP004674

Product Description

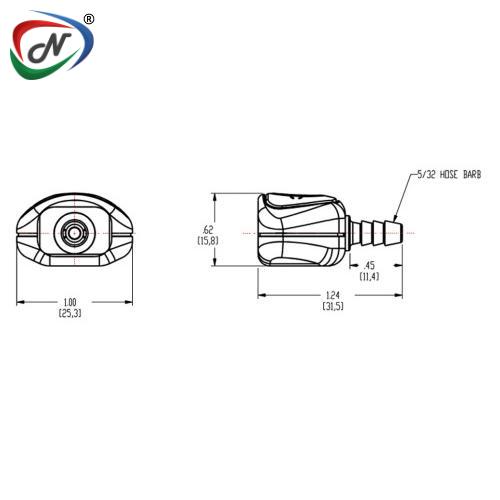

BCF597

5/32" Hose Barb, In-line Bayonet Body

FitQuik connectors and couplings produced by CPC are high-quality fittings that ensure secure, leak-proof connections for tubing applications. Designed to meet instrumentation-grade specifications, these precision-molded fittings are tailored to prevent leakage across a wide array of uses, including medical devices, analytical instruments, and air-driven machinery, among others. The fittings feature meticulously engineered hose barbs and thread configurations to ensure a consistently perfect fit.

Main Features:

Leak-Proof Design
Durable Materials
Easy Installation
Chemical Resistance
Pressure Resistance
Wide Compatibility
Corrosion-Resistant
Leak Detection Features
Vibration Resistance
Cost-Effective Maintenance

Main Specifications:

Material: ABS

Material Finish: Grey with white latch

Pressure Range: Vacuum up to 20 psi, 1.38 bar

Color: Grey

Mounting Option: In-Line

Temperature Range: 32°F - 122°F (0°C - 50°C)

Seal Options: BUNA-N

Body Type: Body

Bag Qty: 25

FitQuik Connector Configurations:

Luers: male, female, panel mount, slip, luer caps and plugs, lock ring, and color-coded ring accessories
Tube-to-tube: straight, straight reducer, elbow, tee, Y
Thread-to-tube: straight, elbow, tee
Plugs and thread-to-thread
Blood pressure: bayonet, screw-type, quarter turn, multiline
