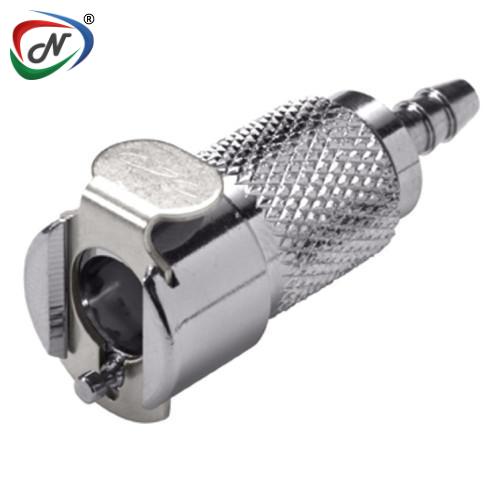

17100 1/8 Hose Barb Valved In-Line Chrome-plated Brass Coupling Body (MCD1702 NSF)

#NSSP004249

Product Description

17100 1/8 Hose Barb Valved In-Line Chrome-plated Brass Coupling Body (MCD1702 NSF)

The chrome-plated brass coupling insert, 17100 1/8 Hose Barb Valved In-Line Chrome-plated Brass Coupling Body  (MCD1702 NSF), is part of the MC Series which is known for its durability and ability to withstand tough conditions.

These couplings are ideal for demanding applications, particularly those with high temperatures or pressures. With easy one-hand operation, the MC Series couplings allow for quick and effortless connections and disconnections.

Moreover, the MC NSF parts meet the NSF/ANSI Standards, ensuring quality and reliability. These couplings offer versatility with multiple configurations and terminations and are compatible with both PMC acetal and PMC12 polypropylene couplings.

Main Specifications:

  • Material: Brass
  • Material Finish: Chrome
  • Color: Chrome
  • Mounting Option: Free Floating
  • Temperature Range: -40°F - 180°F (-40°C - 82°C)
  • Seal Options: FDA BUNA-N
  • Valve Spring: 316 Stainless Steel
  • Valve Options: Valved
  • Body Type: Body
  • Bag Qty: 10

 Features – Benefits:

  • Brass material - Durable and able to withstand higher pressure and temperature
  • High temperature capability - Versions rated to 400°F (204°C)
  • CPC thumb latch - One-hand connection and disconnection
  • Compatible - MC mates with PMC and PMC12 Series couplings

Read More

Medical (Core) & Thermal Industry

Additional Information

NESPL Code NSSP004249
Manufacturer Code 17100 MCD1702
Manufacturer CPC Quick Connect & Disconnect Solutions
Type Quick Fittings
