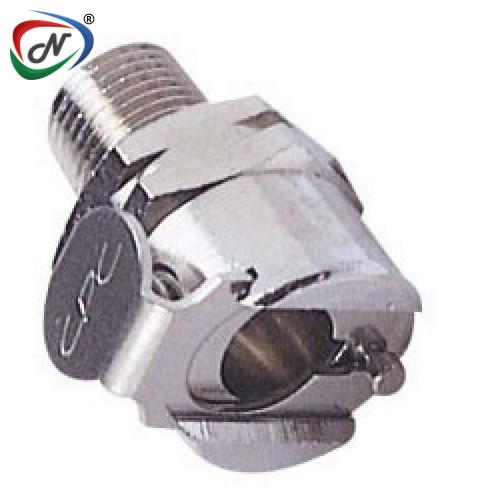

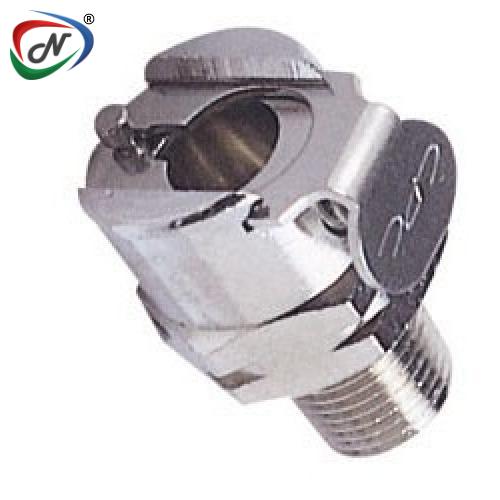

MC1002BSPT 1/8 NPT Non-Valved Chrome-plated Brass Coupling Body

#NSSP006524

Product Description

MC1002BSPT 1/8 NPT Non-Valved Chrome-plated Brass Coupling Body

Main Features:

compatible

High temperature capability

Colder thumb latch

Brass Material

Main benefits:

Durable and able to withstand higher pressure and temperature

MC mates with PMC and PMC12 Series couplings

Versions rated to 400°F (204°C )

One-hand connection and disconnection

Main specifications:

Material: Brass
Material Finish: Chrome
Pressure Range: Vacuum to 120 psi, 5.5 bar
Color: Chrome
Mounting Option: Thread
Temperature Range: 32°F - 150°F (0°C - 66°C)
Seal Options: BUNA – N
Valve Spring: 316 stainless steel
Valve Options: Valved
Body Type: Inserts
Bag Qty: 10

Read More

Click to download : CPC-MC-SERIES-CATALOGUE

Medical (Core) & Thermal Industry

Additional Information

NESPL Code	NSSP006524
Manufacturer Code	MC1002BSPT
Manufacturer	CPC Quick Connect & Disconnect Solutions
Type	Quick Fittings
