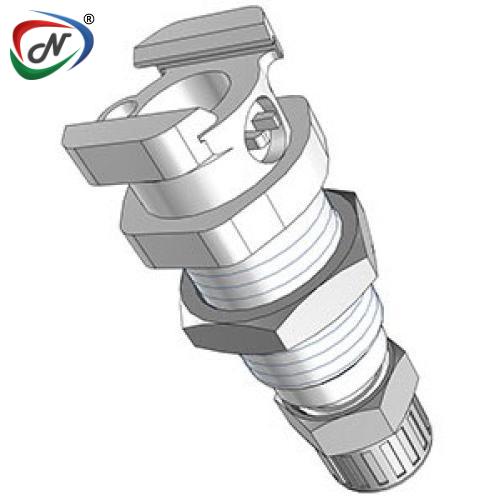

MMD1204 1/4 PTF Valved Multi-Mount Chrome-plated Brass Coupling Body

#NSSP007141

Product Description

MMD1204 1/4 PTF Valved Multi-Mount Chrome-plated Brass Coupling Body

Main Features:

Three-to-five-line connection
Separate flow paths
Insert is keyed to body
Separate flow paths
Acetal or chrome-plated brass

Main Benefits:

Fast, efficient operation
Pressure and/or vacuum in one coupling
Ensures correct line orientation
Pressure and/or vacuum in one
Maximize design flexibility

Main Specifications:

Material: Brass
Material Finish: Chrome
Color: Chrome
Mounting Option: Free Floating
Temperature Range: -40°F - 180°F (-40°C - 82°C)
Seal Options: BUNA-N
Valve Spring: 316 Stainless Steel
Valve Options: Valved
Body Type: Inserts
Bag Qty: 10

Read More

Click to download : CPC-Multi-Mount-Spec-Sheet

Medical (Core) & Thermal Industry

Additional Information

NESPL Code	NSSP007141
Manufacturer Code	MMD1204
Manufacturer	CPC Quick Connect & Disconnect Solutions
Type	Quick Fittings
