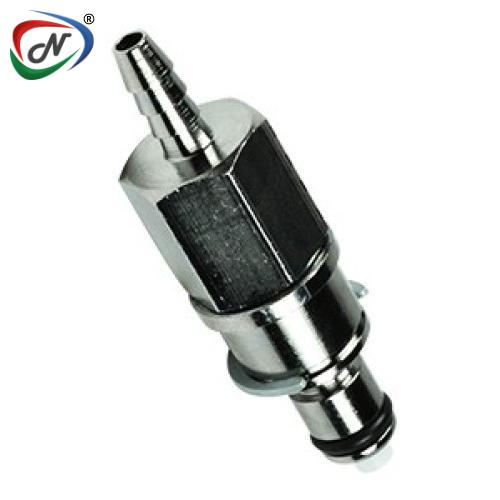

MMD2202 1/8 Hose Barb Valved Multi-Mount Chrome plated Brass Coupling Insert

#NSSP007146

Product Description

MMD2202 1/8 Hose Barb Valved Multi-Mount Chrome plated Brass Coupling Insert

Main Features:

Three-to-five-line connection
Separate flow paths
Insert is keyed to body
Separate flow paths
Acetal or chrome-plated brass

Main Benefits:

Fast, efficient operation
Pressure and/or vacuum in one coupling
Ensures correct line orientation
Pressure and/or vacuum in one
Maximize design flexibility

Main Specifications:

Material: Brass
Material Finish: Chrome
Color: Chrome
Mounting Option: Free Floating
Temperature Range: -40°F - 180°F (-40°C - 82°C)
Seal Options: BUNA-N
Valve Spring: 316 Stainless Steel
Valve Options: Valved
Body Type: Inserts
Bag Qty: 10

Read More

Click to download : CPC-Multi-Mount-Spec-Sheet

Medical (Core) & Thermal Industry

Additional Information

NESPL Code	NSSP007146
Manufacturer Code	MMD2202
Manufacturer	CPC Quick Connect & Disconnect Solutions
Type	Quick Fittings
