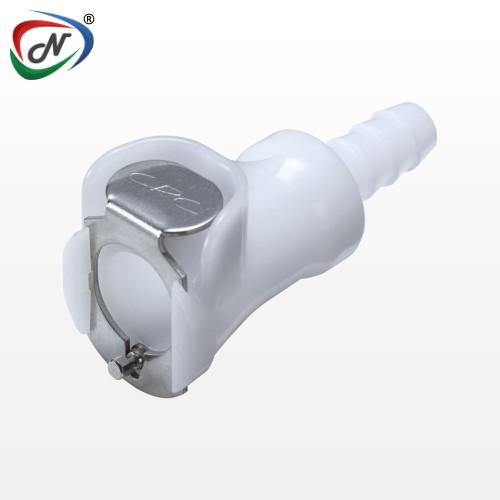

PLCD17006-3/8 Hose Barb Valved In-Line Acetal Coupling Body
#NSSP003063
Product Description
PLCD17006
3/8 Hose Barb Valved In-Line Acetal Coupling Body
Main Features:
- Colder thumb latch
- Integral terminations
- Clicks when connected
- Compatible
Main Benefits:
- One-hand connection and disconnection
- Fewer leak points, shorter assemblies, faster installations
- Assurance of a reliable connection
- Mates with LC and PLC12 Series couplings
Main Specifications:
- Material: Acetal
- Material Finish: Natural
- Color: White
- Mounting Option: Free Floating
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: FDA BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Body
- Weight: .021 Ounce
- Bag Qty: 25
|
TERMINATION |
IN-LINE HOSE BARB |
|
TUBING/THREAD SIZE |
3/8" ID |
|
METRIC EQ |
9.5mm ID |
|
STRAIGHT THRU |
PLC17006 |
|
SHUTOFF |
PLCD17006 |
|
A (Height/ Diameter) |
0.94 (23.9) |
|
B (Total Length) |
1.80/1.95 (45.7/49.5) |
All measurements are in inches (millimetres) unless otherwise noted.
Click to download : CPC PLC SeriesMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003063 |
| Manufacturer Code | PLCD17006 |
| HSN Code | 84818090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Weight | 0.009kg |
| Type | Quick Fittings |
Related Products
PLCD22004 1/4 Hose Barb Valved In-Line Coupling Insert
NESPL Code - #NSSP003060
PLCD42004 1/4 Hose Barb Valved Panel Mount Coupling Insert
NESPL Code - #NSSP003062
PLCD2200406 1/4
NESPL Code - #NCPC282
PLCD2200406MBLK 1/4
NESPL Code - #NCPC283
PLCD2200606 3/8
NESPL Code - #NCPC284
PLCD2200606MBLK 3/8
NESPL Code - #NCPC285

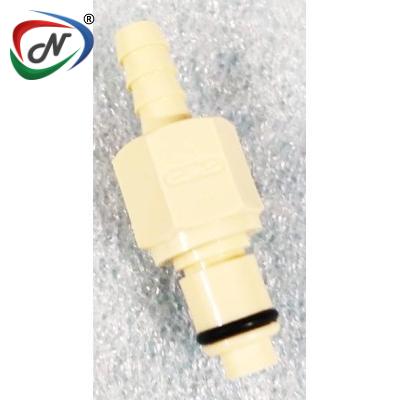

PLCD2200412 1/4 Hose Barb Valved In-Line Coupling Insert
