PLCD22004 1/4 Hose Barb Valved In-Line Coupling Insert
#NSSP003060
Product Description
PLCD22004
1/4 Hose Barb Valved In-Line Coupling Insert
Main Features:
- Colder thumb latch
- Integral terminations
- Clicks when connected
- Compatible
Main Benefits:
- One-hand connection and disconnection
- Fewer leak points, shorter assemblies, faster installations
- Assurance of a reliable connection
- Mates with LC and PLC12 Series couplings
Main Specifications:
- Material: Acetal
- Material Finish: Natural
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: White
- Mounting Option: Free Floating
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Insert
- Weight: .012 Ounce
- Bag Qty: 25

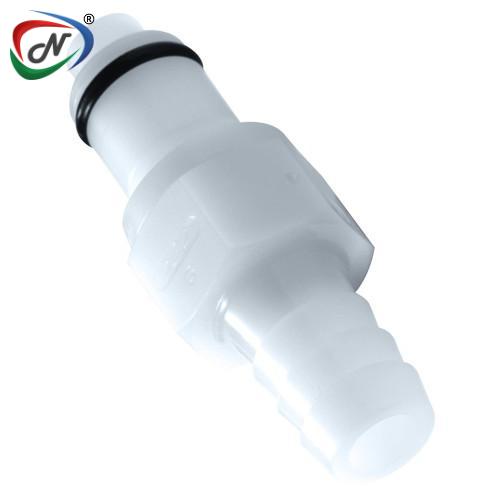

* Image is only for ref.
TERMINATION | IN-LINE HOSE BARB |
TUBING/THREAD SIZE | 1/4" ID |
METRIC EQ | 6.4mm ID |
STRAIGHT THRU | PLC22004 |
SHUTOFF | PLCD22004 |
A (Height/ Diameter) | 0.62 (15.7) |
B (Total Length) | 1.35/1.99 (34.3/50.6) |
All measurements are in inches (millimetres) unless otherwise noted.
Click to download : CPC PLC Series Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003060 |
| Manufacturer Code | PLCD22004 |
| HSN Code | 84818090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Weight | 0.005kg |
| Type | Quick Fittings |
