HQC17002 Polypropylene Hybrid Connector, 1/8
#NSSP005510
Product Description
HQC17002
Polypropylene Hybrid Connector, 1/8" ID (3.2mm) Hose
Main Features:
- Easy connection of data, fluid, pneumatic, and power between a device and its tool/handpiece.
- Shutoff valves with dry-break technology.
- Reliable turnkey solution
- Off-the-shelf assembly
- Customization is possible.
Main Benefits:
- Ensures greater safety while improving system usability.
- Minimize fluid leakage upon disconnect and eliminate air inclusions
- Reduces numerous components at the same time
- Minimizes engineering design and manufacturing effort
- Flexibility to add additional fluid connector or elect contacts.
Main Specifications:
- Material: Polypropylene
- Material Finish: Molded Grey
- Pressure Range: Vacuum to 15 psi, 1.0 bar
- Color: Grey
- Mounting Option: Free Floating
- Temperature Range: 32°F - 120°F (0°C - 49°C)
- Seal Options: EPDM
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Other
- Bag Qty: 1
COUPLING HOSE - Polypropylene
CONFIGURATION | HOSE |
FLOW PATHS | 1/8" ID (3.2mm) |
PART NO. | HQC17002 |
COLOR | GREY |
A(Height/Diameter) | 2 (50.8) |
B( ?Total Length) | 2.8 (71.1) |
C(Pigtail) | 3 (76.2) |
D(Umbilical) | 8 (203.2) |
*All measurements are in inches (millimetres) unless otherwise noted.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : Dimensions/DesignMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP005510 |
| Manufacturer Code | HQC17002 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
Related Products

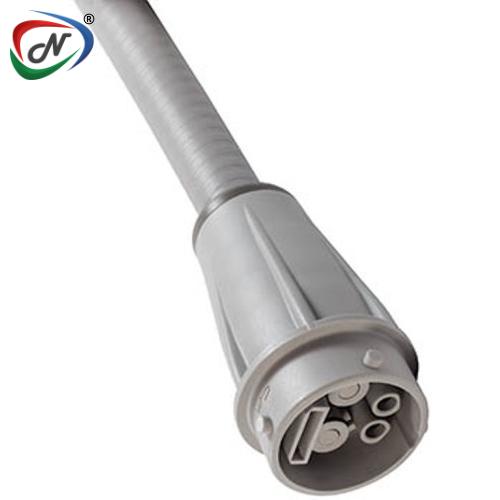

HQC17001 Polypropylene Hybrid Connector, 1/8
