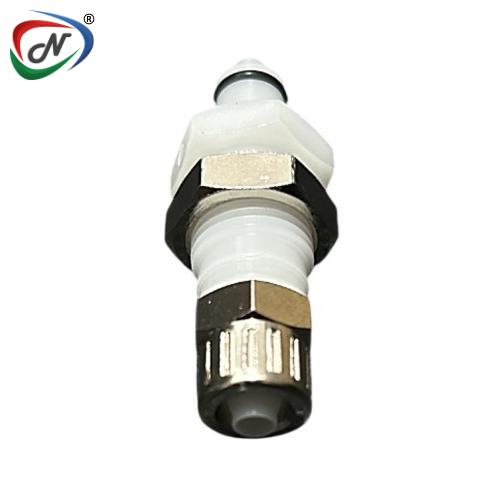

PMCD4004 1/4 PTF Valved Panel Mount Coupling Insert
#NSSP003212
Product Description
PMCD4004
1/4 PTF Valved Panel Mount Coupling Insert
PMC Series couplings, designed with a 1/8" flow, are
suitable for a diverse range of general-purpose applications. Equipped with the
CPC thumb latch, the PMC couplings provide a more user-friendly experience
compared to traditional ball-and-sleeve connector designs. Their one-handed
connection and disconnection capability, along with integral terminations,
position the PMC as a preferred option for both usability and manufacturing
efficiency.
These couplings also present the advantage of various configurations and terminations, allowing compatibility with both MC metal and PMC12 polypropylene couplings. Additionally, NSF-listed versions are offered.
|
Features |
Benefits |
|
Hose barb shroud |
Extra protection for the
1/16" hose barb |
|
Integral terminations |
Fewer leak points, shorter
assemblies, faster installations |
|
Compatible |
Mates with PMC12 and MC
Series couplings |
|
Clicks when connected |
Assurance of a reliable connection |
- Material: Acetal
- Material Finish: Natural
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: White
- Mounting Option: Panel Mount
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Insert
- Bag Qty: 25
Click to download : CPC-PMC-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003212 |
| Manufacturer Code | PMCD4004 |
| HSN Code | 8481805090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Weight | 0.012kg |
| Type | Quick Fittings |
