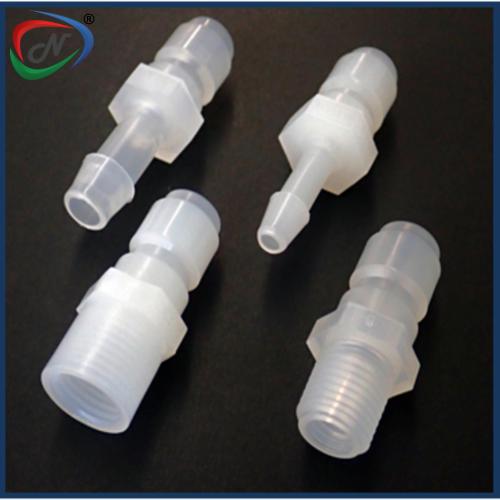

Male Hansen Connectors

#NSSP004174

Product Description

MPC-785 Male Hansen Connector with 1/4-18 NPT Male Polypropylene

Male Hansen Connectors

Main Features:

Male Hansen Connectors are Effortless to Engage

These connectors are extremely Reliable.

MPC-769/MPC-770: Single barbed fittings reduce leakages by having a slicker sealing surface than multi-barbed.

MPC-769: For use with all devices using heat sterilization. Highest sterilization temperature is 282°F.

10 pcs. are packed in per bag & 200pcs. are packed in per case.

Rated Pressure

*246°F maximum sterilization temperature

Lightweight! Low Cost! Excellent Chemical Resistance!

Temperature*	PSI	BAR
75°	110	8
200°	30	2

Part Number	Material	Configuration	C	D	Hex

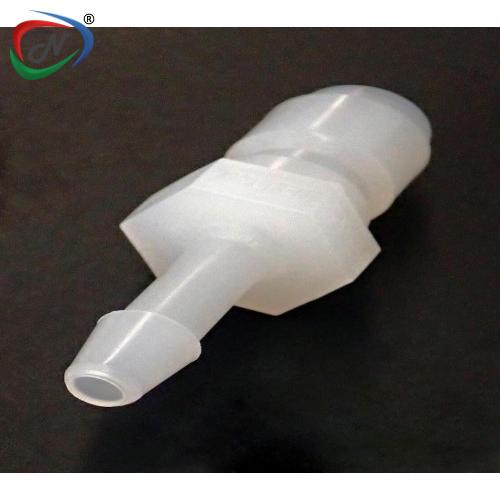

MPC-769	PVDF	Fits 1/4? ID Tubing	2.08	0.79	0.68
MPC-770	Polypropylene	Fits 3/8? ID Tubing	2.12	0.79	0.68
MPC-780	Polypropylene	3/8-18 NPT Male	1.70	0.79	0.68
MPC-781	Polypropylene	1/4-18 NPT Female	1.70	0.79	0.68
MPC-785	Polypropylene	1/4-18 NPT Male	1.70	0.79	0.68

Weight	74 g
Dimensions	2.49 × 2.49 × 3.40 in
Configuration	MPC-769, MPC-770, MPC-780, MPC-781, MPC-785

Read More

Medical (Core) & Thermal Industry

Additional Information

NESPL Code	NSSP004174
Manufacturer Code	MPC-769
HSN Code	39174000
Manufacturer	MPC
Type	Quick Fittings

Related Products

HIGH-TEMP ECONOMY FEMALE HANSEN CONNECTORS - (Dialyzer Port Quick Disconnects )

HIGH-TEMP ECONOMY FEMALE HANSEN CONNECTORS - (Dialyzer Port Quick Disconnects ) NESPL Code - #NSSP004161

Call For Price

SNAP-TO LOCK FEMALE HANSEN STYLE CONNECTORS

SNAP-TO LOCK FEMALE HANSEN STYLE CONNECTORS NESPL Code - #NMPC2

Call For Price

High-Temp Female Hansen Connectors

High-Temp Female Hansen Connectors NESPL Code - #NMPC3

Call For Price

MPC-741 Male Hansen to Male Hansen Adapter

MPC-741 Male Hansen to Male Hansen Adapter NESPL Code - #NSSP003973

Call For Price

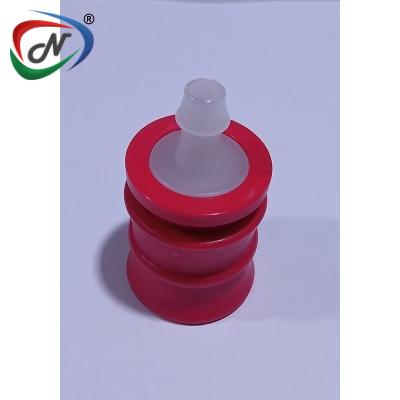

MPC 1013 R BALL CATH LOCK VALVE STRAIGHT BARB-RED

MPC 1013 R BALL CATH LOCK VALVE STRAIGHT BARB-RED NESPL Code - #NSSP003112

Call For Price

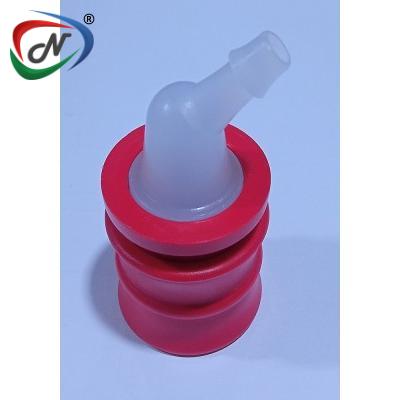

Economy Female Hansen MPC -1010-R
