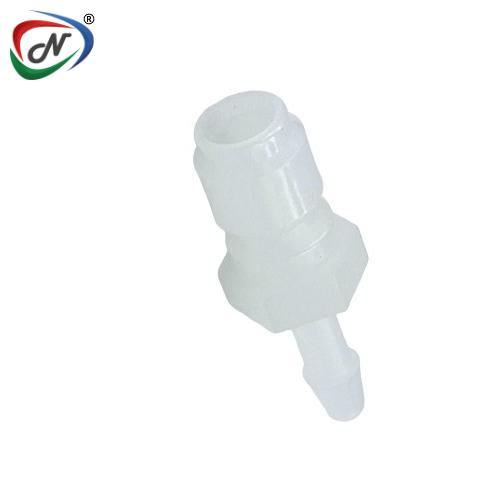

MPC-769 High Temp. Male Hansen Conn fits 1/4

#NSSP004171

Product Description

MPC-769 High Temp. Male Hansen Conn fits 1/4" ID Tubing

Main Features:

  • Male Hansen Connectors are Effortless to Engage
  • These connectors are extremely Reliable.
  • MPC-769/MPC-770: Single barbed fittings reduce leakages by having a slicker sealing surface than multi-barbed.
  • MPC-769: For use with all devices using heat sterilization. Highest sterilization temperature is 282°F.
  • 10 pcs. are packed in per bag & 200pcs. are packed in per case.

 Rated Pressure

  • *246°F maximum sterilization temperature

Lightweight!  Low Cost!  Excellent Chemical Resistance!

Temperature*

PSI

BAR

75°

110

8

200°

30

2



Part Number

Material

Configuration

C

D

Hex

MPC-769

PVDF

Fits ¼” ID Tubing

2.08

0.79

0.68

MPC-770

Polypropylene

Fits 3/8” ID Tubing

2.12

0.79

0.68

MPC-780

Polypropylene

3/8-18 NPT Male

1.70

0.79

0.68

MPC-781

Polypropylene

1/4-18 NPT Female

1.70

0.79

0.68

MPC-785

Polypropylene

1/4-18 NPT Male

1.70

0.79

0.68



Weight

74 g

Dimensions

2.49 × 2.49 × 3.40 in

Configuration

MPC-769, MPC-770, MPC-780, MPC-781, MPC-785



Read More

Medical (Core) & Thermal Industry

Additional Information

NESPL Code NSSP004171
Manufacturer Code MPC-769
HSN Code 39174000
Manufacturer MPC
Type Fittings
