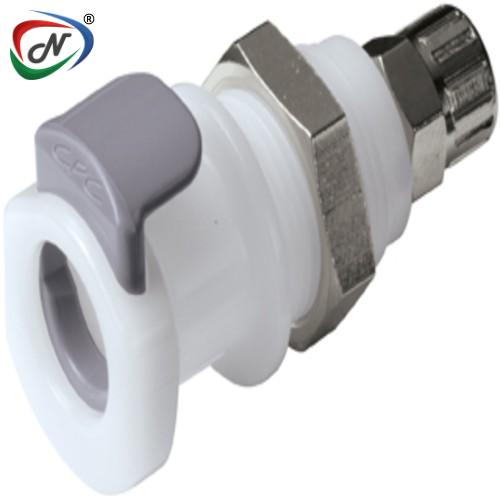

APC12004 1/4 PTF Non-Valved Panel Mount Coupling Body

#NSSP004574

Product Description

APC12004

1/4 PTF Non-Valved Panel Mount Coupling Body

Main Features:

  • Plastic thumb latch
  • Shrouded thumb latch
  • Integral terminations
  • Compatible

Main Benefits:

  • No exposed metal parts
  • Protects against accidental disconnects
  • Fewer leak points, shorter assemblies, faster installations
  • Mates with most EFC couplings

Main Specifications:

  • Material: Acetal
  • Material Finish: Natural
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Color: White
  • Mounting Option: Thread
  • Temperature Range: -40°F - 180°F (-40°C - 82°C)
  • Valve Option: Non-Valved
  • Body Type: Body
  • Bag Qty: 25

 COUPLING BODY- Acetal

TERMINATION

PANEL MOUNT

FERRULELESS POLYTUBE

FITTING, PTF

TUBING/THREAD SIZE

1/4" OD, 0.17" ID

METRIC EQ.

6.4mm OD, 4.3mm ID

STRAIGHT THRU

APC12004

SHUTOFF

APCD12004

A(Height/Diameter)

1.03 (26.2)

B (Total Length)

1.97 (50.0)



*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.

Read More

Medical (Core) & Thermal Industry

Additional Information

NESPL Code NSSP004574
Manufacturer Code APC12004
Manufacturer CPC Quick Connect & Disconnect Solutions
Type Quick Fittings
