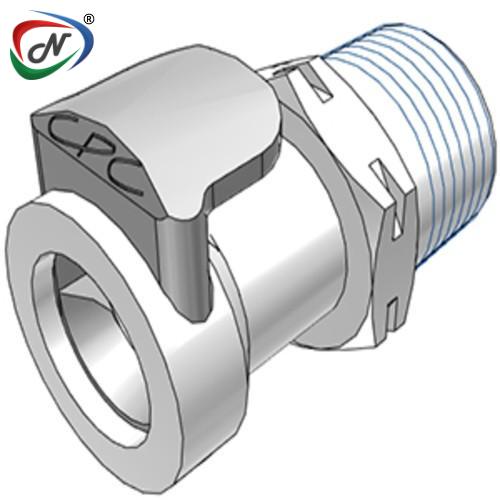

APCD10006BSPT 3/8 BSPT Valved Coupling Body
#NCPC239
Product Description
APCD10006BSPT
3/8 BSPT Valved Coupling Body
Main Features:
- Plastic thumb latch
- Shrouded thumb latch
- Integral terminations
- Compatible
Main Benefits:
- No exposed metal parts
- Protects against accidental disconnects
- Fewer leak points, shorter assemblies, faster installations
- Mates with most EFC couplings
Main Specifications:
- Material: Acetal
- Material Finish: Natural
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: White
- Mounting Option: Panel Mount
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Valve Option: Non-Valved
- Body Type: Body
- Bag Qty: 25
COUPLING BODY- Acetal
TERMINATION | IN-LINE PIPE THREAD |
TUBING/THREAD SIZE | 3/8" BSPT |
STRAIGHT THRU | APC10006BSPT |
SHUTOFF | APCD10006BSPT |
A(Height/Diameter) | 0.93 (23.6) |
B (Total Length) | 1.4 (25.6) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
Note: Image is just for ref.
Click to download : Dimensions/Design Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | NCPC239 |
| Manufacturer Code | APCD10006BSPT |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
