DTLD17006 3/8

#NCPC280

Product Description

DTLD17006

3/8" Dual Hose Barb, Valved, In-line Coupling Body

Main Features:

Single thumb latch

Latch always in position to accept insert

Compact, modular design

Independent quick connections

Main Benefits:

Minimizes inadvertent latch activation

Ensures leak-free operation

Fits well in the hand and is easy to wipe down

Requires minimal manual dexterity

Main Specifications:

Material: ABS

Material Finish: White with blue latch

Pressure Range: Vacuum to 20 psi, 1.38 bar

Mounting Option: Free Floating

Sterilization: EtO, e-beam or gamma

Temperature Range: 32°F - 120°F (0°C - 48°C)

Seal Options: BUNA-N

Valve Spring: 316 Stainless Steel

Valve Option: Valved

Body Type: Body

Bag Qty: 25

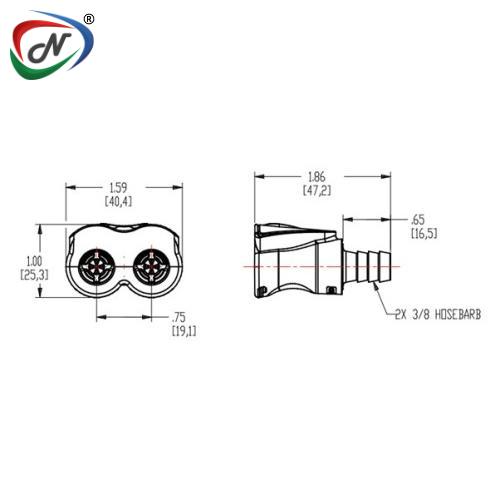

COUPLING BODIES - ABS

TERMINATION	IN-LINE HOSE BARB
TUBING/ THREAD SIZE	3/8" ID
METRIC EQ.	9.5mm ID
SHUTTOFF	DTLD17006
A (Height/Diameter)	1.59 (40.4)
B (Total Length)	1.86 (47.2)
C (Center-to-center distance)	0.75 (19.1)
D (Elbow Radial Length)	1 (25.4)

*All measurements are in inches (millimetres) unless otherwise noted.

Note: Image is just for ref.

WARNING: Pressure, temperature, chemicals, and operating environment can affect the performance of couplings. It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
