EFC22612 3/8 Hose Barb Non-Valved In-Line Coupling Insert

#NCPC293

Product Description

EFC22612

3/8 Hose Barb Non-Valved In-Line Coupling Insert

Main Features:

High Efficiency Valve

Plastic Thumb Latch

Polypropylene Material

Compatible

Main Benefits:

More Flow in a Compact Size

Fewer Moving Parts

Chemically Resistant & Gamma Sterilizable

Mates with most APC couplings

Main Specifications:

Material: Polypropylene

Material Finish: Molded Grey

Mounting Option: Free Floating

Temperature Range: 32°F - 160°F (0°C - 71°C)

Seal Options: EPDM

Valve Option: Non-Valved

Body Type: Insert

Bag Qty: 25

COUPLING INSERT - Polypropylene

TERMINATION	IN-LINE HOSE BARB
TUBING/ THREAD SIZE	3/8" ID
METRIC EQ	9.5mm ID
STRAIGHT THRU	EFC22612
SHUTTOFF	EFCD22612
A (Height/Diameter)	0.60/0.72 (15.2/18.3)
B (Total Length)	1.33/2.08 (33.8/52.8)

*All measurements are in inches (millimetres) unless otherwise noted.

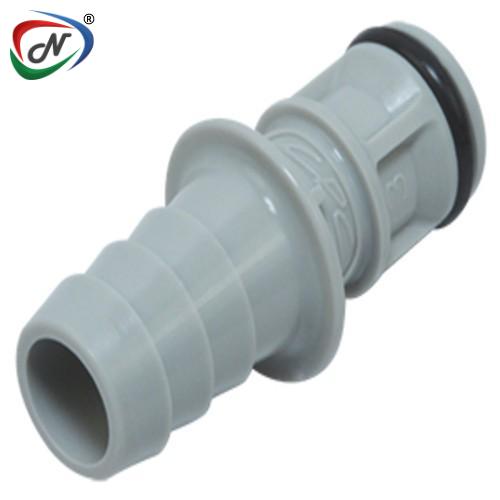

Note: Image is just for ref.

WARNING: Pressure, temperature, chemicals, and operating environment can affect the performance of couplings. It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
