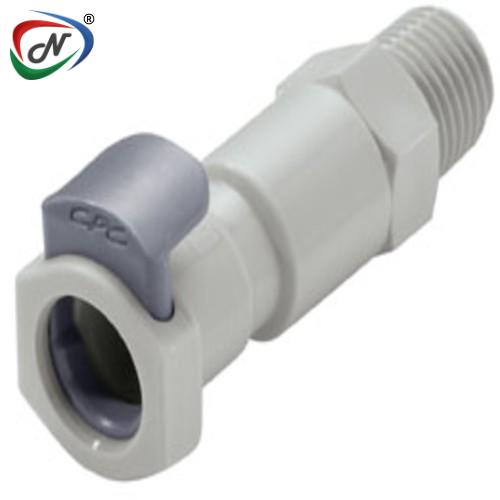

EFCD10412 1/4 NPT Valved Coupling Body
#NCPC286
Product Description
EFCD10412
1/4 NPT Valved Coupling Body
Main Features:
- High Efficiency Valve
- Plastic Thumb Latch
- Polypropylene Material
- Compatible
Main Benefits:
- More Flow in a Compact Size
- Fewer Moving Parts
- Chemically Resistant & Gamma Sterilizable
- Mates with most APC couplings
Main Specifications:
- Material: Polypropylene
- Material Finish: Molded Grey
- Mounting Option: Thread
- Temperature Range: 32°F - 160°F (0°C - 71°C)
- Seal Options: EPDM
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Body
- Bag Qty: 25
COUPLING BODIES - Polypropylene
TERMINATION | IN-LINE PIPE THREAD |
TUBING/ THREAD SIZE | 1/4" NPT |
SHUTTOFF | EFCD10412 |
A (Height/Diameter) | 0.93 (23.6) |
B (Total Length) | 2.29 (58.2) |
*All measurements are in inches (millimetres) unless otherwise noted.
Note: Image is just for ref.
WARNING: Pressure, temperature, chemicals, and operating environment can affect the performance of couplings. It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | NCPC286 |
| Manufacturer Code | EFCD10412 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
