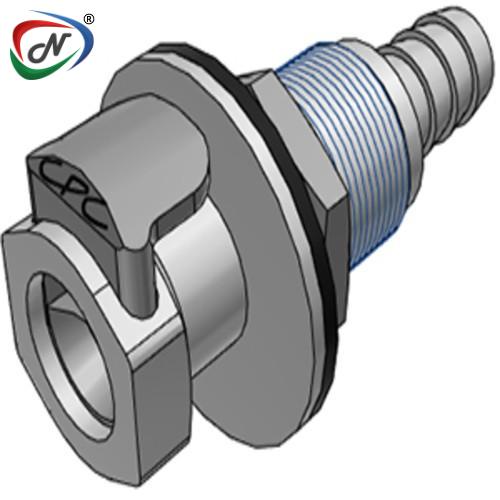

EFCD16612 3/8 Hose Barb Valved Panel Mount Coupling Body

#NSSP005026

Product Description

EFCD16612

3/8 Hose Barb Valved Panel Mount Coupling Body

Main Features:

High Efficiency Valve

Plastic Thumb Latch

Polypropylene Material

Compatible

Main Benefits:

More Flow in a Compact Size

Fewer Moving Parts

Chemically Resistant & Gamma Sterilizable

Mates with most APC couplings

Main Specifications:

Material: Polypropylene

Material Finish: Molded Grey

Mounting Option: Panel Mount

Temperature Range: 32°F - 160°F (0°C - 71°C)

Seal Options: EPDM

Valve Spring: 316 Stainless Steel

Valve Option: Valved

Body Type: Body

Bag Qty: 25

COUPLING BODIES - Polypropylene

TERMINATION	BULKHEAD PANEL MOUNT HOSE BARB
TUBING/ THREAD SIZE	3/8" ID
METRIC EQ	9.5mm ID
SHUTTOFF	EFCD16612
A (Height/Diameter)	0.93 (23.6)
B (Total Length)	2.23 (56.6)

*All measurements are in inches (millimetres) unless otherwise noted.

WARNING: Pressure, temperature, chemicals, and operating environment can affect the performance of couplings. It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
