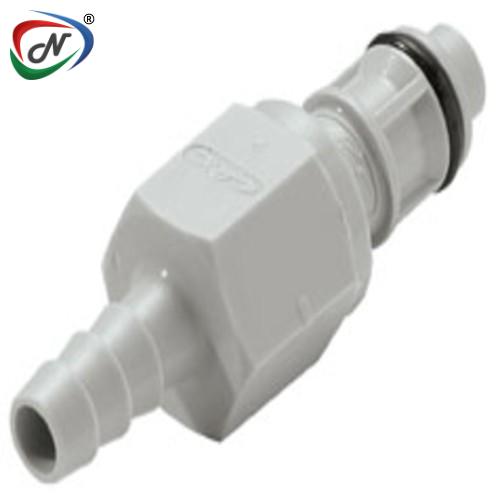

EFCD22412 1/4 Hose Barb Valved In-Line Coupling Insert

#NCPC296

Product Description

EFCD22412

1/4 Hose Barb Valved In-Line Coupling Insert

Main Features:

High Efficiency Valve
Plastic Thumb Latch
Polypropylene Material
Compatible

Main Benefits:

More Flow in a Compact Size
Fewer Moving Parts
Chemically Resistant & Gamma Sterilizable
Mates with most APC couplings

Main Specifications:

Material: Polypropylene
Material Finish: Molded Grey
Mounting Option: Free Floating
Temperature Range: 32°F - 160°F (0°C - 71°C)
Seal Options: EPDM
Valve Spring: 316 Stainless Steel
Valve Option: Valved
Body Type: Insert
Bag Qty: 25

COUPLING INSERT - Polypropylene

TERMINATION	IN-LINE HOSE BARB
TUBING/ THREAD SIZE	1/4" ID
METRIC EQ	6.4mm ID
STRAIGHT THRU	EFC22412
SHUTTOFF	EFCD22412
A(Height/Diameter)	0.60/0.72 (15.2/18.3)
B (Total Length)	1.33/2.08 (33.8/52.8)

*All measurements are in inches (millimetres) unless otherwise noted.

Note: Image is just for ref.

WARNING: Pressure, temperature, chemicals, and operating environment can affect the performance of couplings. It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
