LQ4D17004LRED Everis 1/4

#NSSP006271

Product Description

LQ4D17004LRED

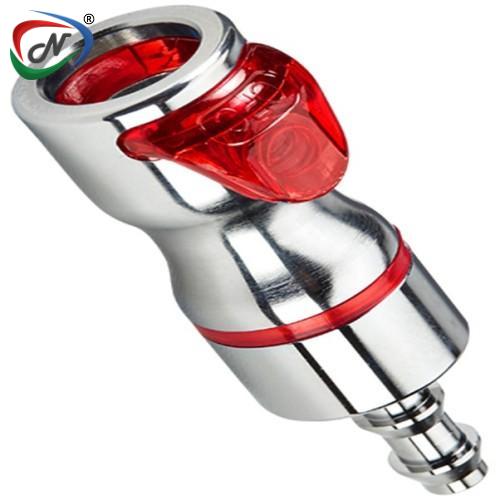

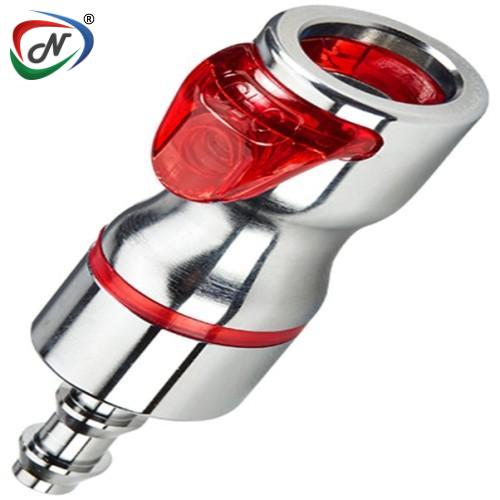

Everis 1/4" Locking Hose Barb Valved In-Line Body, Warm Red

Main Features:

Non-Spill Design

Redundant Multi-Lobed Seals

High Flow Capacity with Low Pressure Drop

EPDM Or FKM Seals

Ergonomic Body and Latch Design

Colour Coding

Low Profile

Barbed & Threaded Terminations

Main Benefits:

Disconnect Under Pressure with no Spills

Extra Protection from Leaks over an Extended period of Time.

Efficient, Cost-Effective Cooling System

Options Support common coolants used in liquid cooling applications (i.e., Glycol/Water, Mineral Oil, Synthetic Oils, Electro cool)

Simple, Intuitive One-Handed Operation of Latch. Audible Click Signals Secure Connection

Instant Visual Identification of Cooling Lines.

Meets size requirements for Space- Constrained Electronics

Compatibility with various tubing options including reinforced tubing.

Main Specifications:

Material: Brass

Material Finish: Chrome

Pressure Range: Vacuum to 120 psi, 8.3 bar

Color: Chrome with warm red

Mounting Option: In-Line

Temperature Range: 0°F - 240°F (-17°C - 115°C)

Seal Options: EPDM

Valve Spring: Stainless Steel

Valve Option: Valved

Body Type: Body

Shipping/Storage Temperature Range: -40°F to 240°F (-40°C to 115°C)

Spillage: <0.025 cc per disconnect rated at 0 psi; <0.055 cc per disconnect rated at 120 psi; <0.025 cc per connect

Bag Qty: 10

Click to download : Dimensions/Design

Medical (Core) & Thermal Industry

Additional Information

NESPL Code	NSSP006271
Manufacturer Code	LQ4D17004LBLU
Manufacturer	CPC Quick Connect & Disconnect Solutions
Type	Quick Fittings
