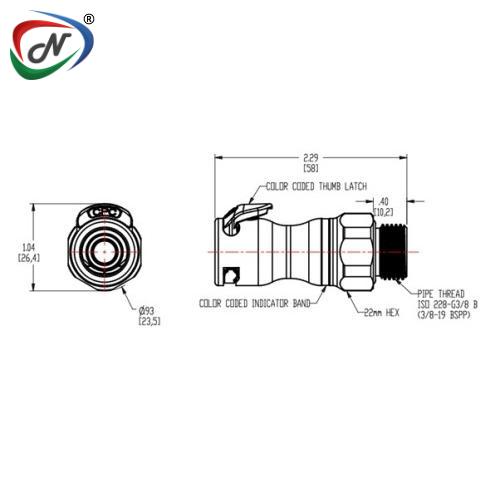

LQ4D31006RED Everis 3/8" G-Thread/BSPP Valved In-line Liquid Cooling Body, Warm Red

#NSSP006402

Product Description

LQ4D31006RED

Everis 3/8" G-Thread/BSPP Valved In-line Liquid Cooling Body, Warm Red

Main Features:

  • Non-Spill Design
  • Redundant Multi-Lobed Seals
  • High Flow Capacity with Low Pressure Drop
  • EPDM Or FKM Seals
  • Ergonomic Body and Latch Design
  • Colour Coding
  • Low Profile
  • Barbed & Threaded Terminations

Main Benefits:

  • Disconnect Under Pressure with no Spills
  • Extra Protection from Leaks over an Extended period of Time.
  • Efficient, Cost-Effective Cooling System
  • Options Support common coolants used in liquid cooling applications (i.e., Glycol/Water, Mineral Oil, Synthetic Oils, Electro cool)
  • Simple, Intuitive One-Handed Operation of Latch. Audible Click Signals Secure Connection
  • Instant Visual Identification of Cooling Lines.
  • Meets size requirements for Space- Constrained Electronics
  • Compatibility with various tubing options including reinforced tubing.

Main Specifications:

  • Material: Brass
  • Material Finish: Chrome
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Color: Chrome with warm red
  • Mounting Option: Thread
  • Temperature Range: 0°F - 240°F (-17°C - 115°C)
  • Seal Options: EPDM
  • Valve Spring: Stainless Steel
  • Valve Option: Valved
  • Body Type: Body
  • Shipping/Storage Temperature Range: -40°F to 240°F (-40°C to 115°C)
  • Spillage: <0.025 cc per disconnect rated at 0 psi; <0.055 cc per disconnect rated at 120 psi; <0.025 cc per connect
  • Weight: .178 Ounce
  • Bag Qty: 10
Read More

Medical (Core) & Thermal Industry

Additional Information

NESPL Code NSSP006402
Manufacturer Code LQ4D31006RED
Manufacturer CPC Quick Connect & Disconnect Solutions
Type Quick Fittings
