LQ2D4604BLU 1/8" Everis SAE Valved Liquid Cooling Coupling Insert, Cool Blue

#NSSP006127

Product Description

LQ2D4604BLU

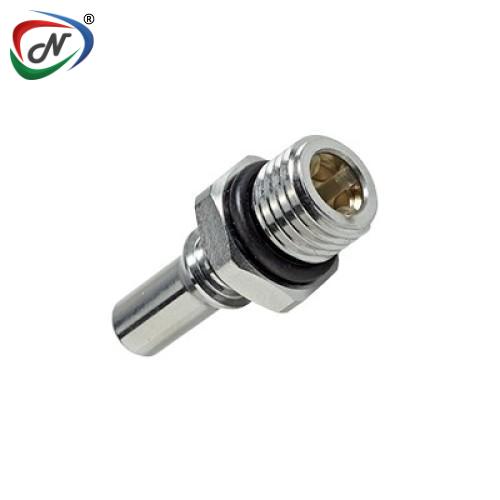

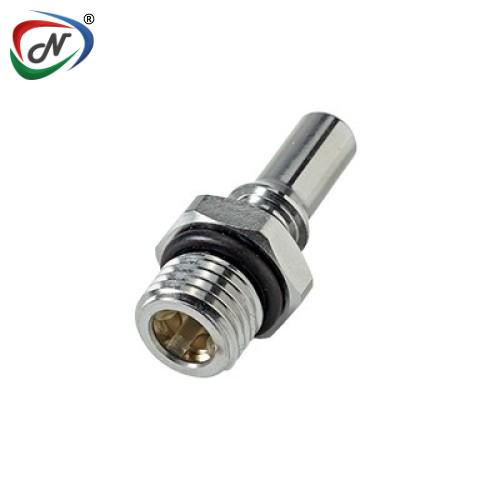

1/8" Everis SAE Valved Liquid Cooling Coupling Insert, Cool Blue

Main Features:

Non-Spill Design

Redundant Multi-Lobed Seals

High Flow Capacity with Low Pressure Drop

EPDM Or FKM Seals

Ergonomic Body and Latch Design

Colour Coding

Low Profile

Barbed & Threaded Terminations

Main Benefits:

Disconnect Under Pressure with no Spills

Extra Protection from Leaks over an Extended period of Time.

Efficient, Cost-Effective Cooling System

Options Support common coolants used in liquid cooling applications (i.e., Glycol/Water, Mineral Oil, Synthetic Oils, Electro cool)

Simple, Intuitive One-Handed Operation of Latch. Audible Click Signals Secure Connection

Instant Visual Identification of Cooling Lines.

Meets size requirements for Space- Constrained Electronics

Compatibility with various tubing options including reinforced tubing.

Main Specifications:

Material: Brass

Material Finish: Chrome

Pressure Range: Vacuum to 200 psi, 13.8 bar

Color: Chrome with cool blue

Mounting Option: Thread

Temperature Range: 0°F - 240°F (-17°C - 115°C)

Seal Options: EPDM

Valve Spring: Stainless Steel

Valve Option: Valved

Body Type: Insert

Shipping/Storage Temperature Range: -40°F to 240°F (-40°C to 115°C)

Spillage: <0.015 cc per disconnect at 0 psi; <0.063 cc per disconnect at 200 psi

Weight:.0261 Ounce

Bag Qty: 10

Read More

Medical (Core) & Thermal Industry

Additional Information

NESPL Code	NSSP006127
Manufacturer Code	LQ2D4604BLU
Manufacturer	CPC Quick Connect & Disconnect Solutions
Type	Quick Fittings
