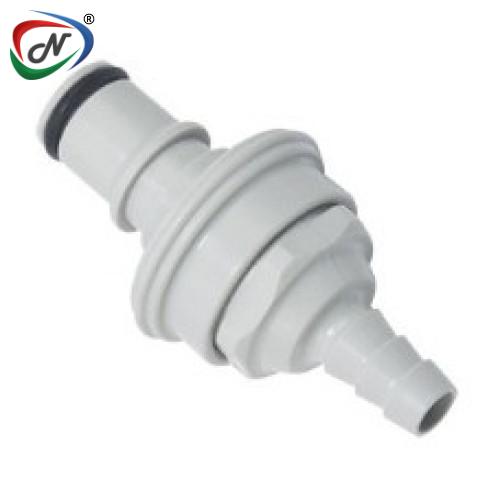

INS4DT2200400 1/4 Hose Barb Valved In-Line IdentiQuik Coupling Insert with RFID
#NSSP005725
Product Description
INS4DT2200400
1/4 Hose Barb Valved In-Line IdentiQuik Coupling Insert with RFID
Main Features:
- Non-Spill Design
- Colour Coding
- Glass -Fitted Polypropylene
Main Benefits:
- Disconnect under pressure with no spills
- Instant visual differentiation of media lines
- Durable & Compatible with many chemicals.
Main Specifications:
- Material: Polypropylene
- Material Finish: Molded Grey
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: Gray with dark gray overmold
- Mounting Option: Free Floating
- Temperature Range: 32°F - 160°F (0°C - 71°C)
- Seal Options: EPDM
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Insert
- Spillage: <0.10 cc per disconnect, 0.10cc per connect
- Bag Qty: 25
TERMINATION | IN-LINE HOSE BARB (RS-232 INTERFACE) |
TUBING/THREAD SIZE | 1/4" ID |
METRIC EQ. | 6.4mm ID |
POLYPROPYLENE SHUTOFF | iNS4DT2200400 |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP005725 |
| Manufacturer Code | INS4DT2200400 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
