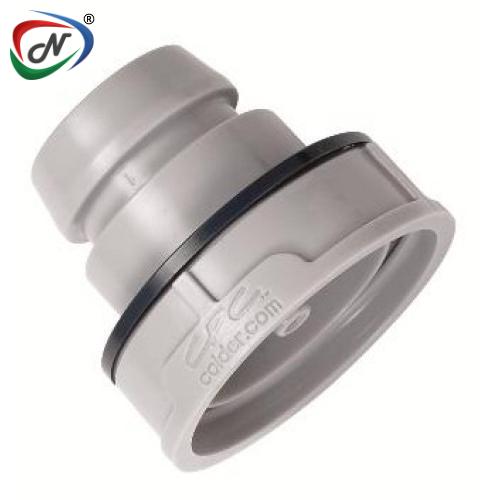

IUDCDTCS3803 IdentiQuik 38mm Valved Threaded Cap with RFID, FDA EPDM gasket, acetal

#NSSP005740

Product Description

IUDCDTCS3803

IdentiQuik 38mm Valved Threaded Cap with RFID, FDA EPDM gasket, acetal

Main Features:

Data exchange using RFID (Radio Frequency Identification)
Smart Couplings
“CPC Click”
Available in CPC’s PLC12, NS4, SMC, UDC series couplings.

Main Benefits:

Brand protection, fluid tracking and extended equipment life.
Prevent misconnections
Audible confirmation of connection
Suitable for a wide variety of materials and flow sizes

Main Specifications:

Material: Polypropylene
Material Finish: Molded Black
Color: Black
Mounting Option: Free Floating
Temperature Range: 32°F - 150°F (0°C - 66°C)
Seal Options: EPDM, Silicone
Valve Spring: 302 Stainless Steel
Valve Option: Valved
Body Type: Caps & Plugs
Bag Qty: 100

UDC COUPLING CAPS - Acetal

TERMINATION	THREAD-ON 38MM VALVED
TUBING/THREAD SIZE	With thread seal
METRIC EQ.	38mm
SHUTOFF	iUDCDTCS3803
A(Height/Diameter)	1.7 (43.2)
B( Total Length)	1.47 (37.3)

*All measurements are in inches (millimetres) unless otherwise noted.

WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

Note: Image is just for ref.

Read More

Medical (Core) & Thermal Industry

Additional Information

NESPL Code	NSSP005740
Manufacturer Code	IUDCDTCS3803
Manufacturer	CPC Quick Connect & Disconnect Solutions
Type	Quick Fittings
