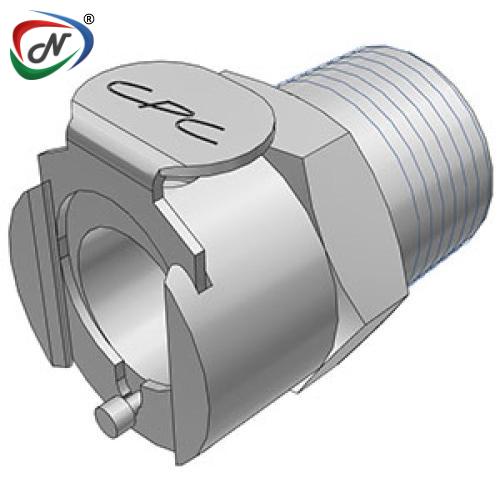

LC10006BSPT 3/8 BSPT Non-Valved Coupling Body

#NSSP005774

Product Description

LC10006BSPT

3/8 BSPT Non-Valved Coupling Body

Main Features:

Brass Material

Chrome Plating High Temperature

Capability

Compatible

Main Benefits:

Durable & able to withstand higher pressure & temperature

Attractive Appearance

Versions rated to 400* F (240* C)

Mates with PLC and PLC12 Series Coupling

Main Specifications:

Material: Brass

Material Finish: Chrome

Pressure Range: Vacuum to 250 psi, 17.3 bar

Color: Chrome

Mounting Option: Thread

Temperature Range: -40°F - 180°F (-40°C - 82°C)

Valve Option: Non-Valved

Body Type: Body

Weight: .097 Ounce

Bag Qty: 10

TERMINATION	IN-LINE PIPE THREAD
TUBING/THREAD SIZE	3/8" NPT
STRAIGHT THRU	LC10006BSPT
SHUTOFF	LCD10006BSPT
A (Height/ Diameter)	0.88(22.9)
B (Total Length)	1.15 (29.2)

*All measurements are in inches (millimetres) unless otherwise noted.

Click to download : CPC LC series

Medical (Core) & Thermal Industry

Additional Information

NESPL Code	NSSP005774
Manufacturer Code	LC10006BSPT
Manufacturer	CPC Quick Connect & Disconnect Solutions
Type	Quick Fittings
