Catalogue Pack

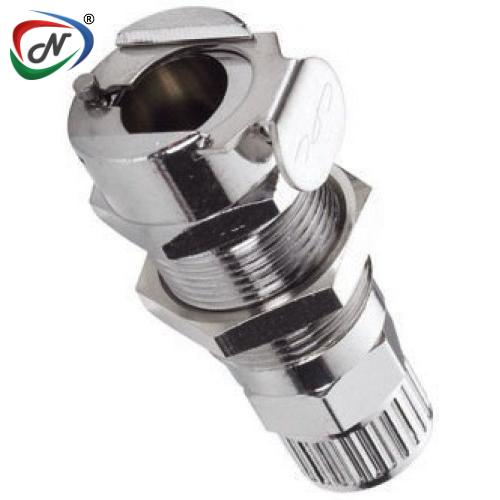

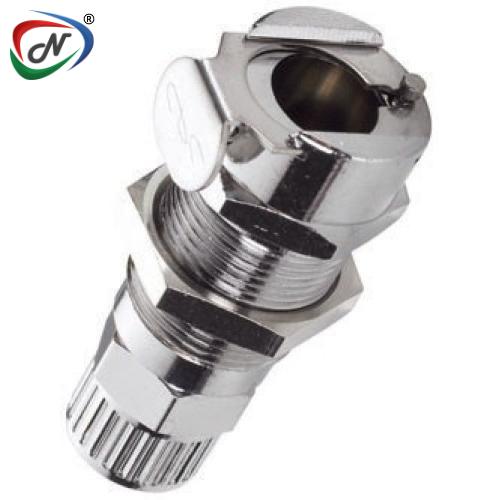

LC12006 3/8 PTF Non-Valved Panel Mount Coupling Body

#NSSP005777

Product Description

LC12006

3/8 PTF Non-Valved Panel Mount Coupling Body

Main Features:

  • Brass Material
  • Chrome Plating High Temperature
  • Capability
  • Compatible

Main Benefits:

  • Durable & able to withstand higher pressure & temperature
  • Attractive Appearance
  • Versions rated to 400* F (240* C)
  • Mates with PLC and PLC12 Series Coupling

Main Specifications:

  • Material: Brass
  • Material Finish: Chrome
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Color: Chrome
  • Mounting Option: Panel Mount
  • Temperature Range: -40°F - 180°F (-40°C - 82°C)
  • Valve Option: Non-Valved
  • Body Type: Body
  • Weight: .1195 Ounce
  • Bag Qty: 10

TERMINATION

PANEL MOUNT

FERRULELESS

POLYTUBE FITTING,

PTF†

TUBING/THREAD SIZE

3/8" OD, 1/4" ID

METRIC EQ

9.5mm OD, 6.4mm ID

STRAIGHT THRU

LC12006

SHUTOFF

LCD12004

A (Height/ Diameter)

0.88(22.9)

B (Total Length)

2 (50.8)

All measurements are in inches (millimeters) unless otherwise noted.

Read More

Medical (Core) & Thermal Industry

Additional Information

NESPL Code NSSP005777
Manufacturer Code LC12006
Manufacturer CPC Quick Connect & Disconnect Solutions
Type Quick Fittings
