LC13004 1/4

#NSSP005779

Product Description

LC13004

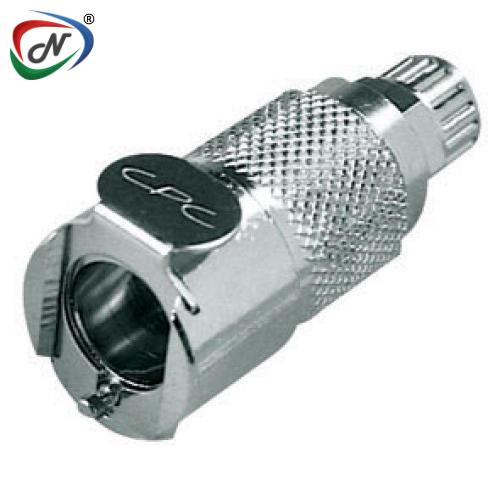

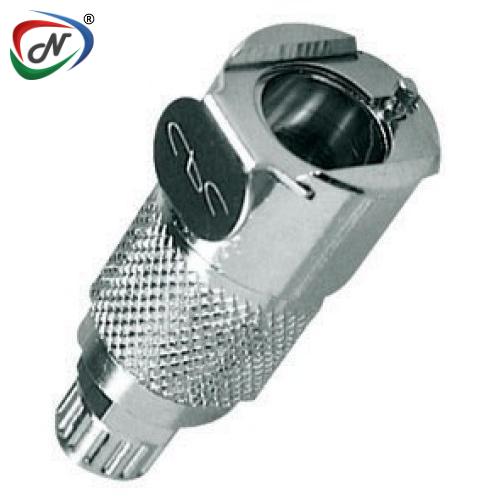

1/4 PTF Non-Valved In-Line Coupling Body

Main Features:

  • Brass Material
  • Chrome Plating High Temperature
  • Capability
  • Compatible

Main Benefits:

  • Durable & able to withstand higher pressure & temperature
  • Attractive Appearance
  • Versions rated to 400* F (240* C)
  • Mates with PLC and PLC12 Series Coupling

Main Specifications:

  • Material: Brass
  • Material Finish: Chrome
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Color: Chrome
  • Mounting Option: Free Floating
  • Temperature Range: -40°F - 180°F (-40°C - 82°C)
  • Valve Option: Non-Valved
  • Body Type: Body
  • Weight: .1212 Ounce
  • Bag Qty: 10



TERMINATION

IN-LINE FERRULELESS POLYTUBE FITTING, PTF†

TUBING/THREAD SIZE

1/4" OD, 0.17" ID

?METRIC EQ

6.4mm OD, 4.3mm ID

STRAIGHT THRU

LC13004

SHUTOFF

LCD13004

A (Height/ Diameter)

0.88(22.9)

B (Total Length)

1.87 (47.5)

All measurements are in inches (millimetres) unless otherwise noted.

Read More

Medical (Core) & Thermal Industry

Additional Information

NESPL Code NSSP005779
Manufacturer Code LC13004
Manufacturer CPC Quick Connect & Disconnect Solutions
Type Quick Fittings
