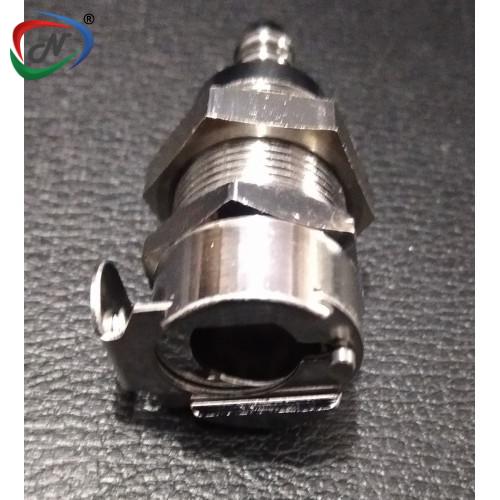

LCD16004 1/4 Hose Barb Valved Panel Mount Coupling Body
#NSSP003208
Product Description
LCD16004
1/4 Hose Barb Valved Panel Mount Coupling Body
Main Features:
- Brass Material
- Chrome Plating High Temperature
- Capability
- Compatible
Main Benefits:
- Durable & able to withstand higher pressure & temperature
- Attractive Appearance
- Versions rated to 400* F (240* C)
- Mates with PLC and PLC12 Series Coupling
Main Specifications:
- Material: Brass
- Material Finish: Chrome
- Pressure Range: Vacuum to 250 psi, 17.3 bar
- Color: Chrome
- Mounting Option: Panel Mount
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Body
- Weight: .1065 Ounce
- Bag Qty: 10
Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003208 |
| Manufacturer Code | LCD16004 |
| HSN Code | 8481805090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Model | LCD16004 |
| Weight | 0.055kg |
| Type | Quick Fittings |
Related Products

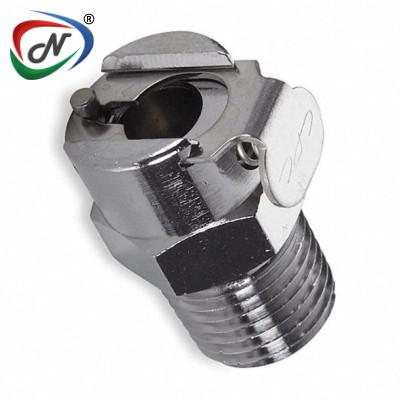

LC10004 1/4 NPT Non-Valved Coupling Body
