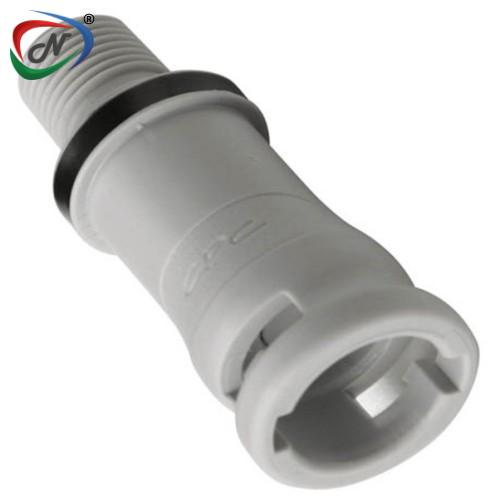

NS2D100212 1/8 NPT Valved Coupling Body
#NCPC137
Product Description
NS2D100212
1/8 NPT Valved Coupling Body
Main Features:
- Efficient, Non-Spill Design
- Multiple Seal Materials
- Twist-to-connect locking
- Compact design
- Ultra-low air inclusion
Main Benefits:
- Disconnect under pressure with no spills
- Broad chemical compatibility for diverse applications.
- Easy, non-spill connections in tight spaces
- High flow in a small connector
- Minimizes contaminants, reduces the need to purge lines
Main Specifications:
- Material: Polypropylene
- Material Finish: Molded Grey
- Pressure Range: Vacuum to 45 psi, 3.1 bar
- Color: Gray with dark gray overmold
- Mounting Option: Thread
- Temperature Range: 32°F - 120°F (0°C - 49°C)
- Seal Options: EPDM, FFKM
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Body
- Spillage: <0.025 cc per disconnect, 0.009cc per connect
- Weight: .0095 Ounce
- Bag Qty: 25
TERMINATION | IN-LINE PIPE THREAD |
TUBING/THREAD SIZE | 1/8" NPT |
SHUTOFF | NS2D100212 |
A(Height/Diameter) | 0.71 (18.0) |
B (Total Length) | 1.74 (44.2) |
*All measurements are in inches (millimetres) unless otherwise noted.
Click to download : NS2D100212 Dimensions/Design Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | NCPC137 |
| Manufacturer Code | NS2D100212 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
