NS4D1000406 1/4 NPT Valved Coupling Body
#NCPC182
Product Description
NS4D1000406
1/4 NPT Valved Coupling Body
Main Features:
- Non-Spill
Design
- Colour
Coding
- Glass
-Fitted Polypropylene
Main Benefits:
- Disconnect
under pressure with no spills
- Instant
visual differentiation of media lines
- Durable
& Compatible with many chemicals.
Main Specifications:
- Material: ABS
- Material
Finish: Molded White
- Pressure
Range: Vacuum to 120 psi, 8.3 bar
- Color: White
with teal overmold
- Mounting
Option: Thread
- Temperature
Range: 32°F - 160°F (0°C - 71°C)
- Seal
Options: EPDM
- Valve
Spring: 316 Stainless Steel
- Valve
Option: Valved
- Body
Type: Body
- Spillage: <0.10
cc per disconnect, 0.10cc per connect
- Weight: .0317
Ounce
- Bag
Qty: 25
- Coupling
Bodies - Polypropylene/ABS
|
TERMINATION |
IN-LINE PIPE
THREAD |
|
TUBING/THREAD SIZE |
1/4" NPT |
|
ABS SHUTOFF |
NS4D1000406 |
|
POLYPROPYLENE
SHUTOFF |
NS4D10004 |
|

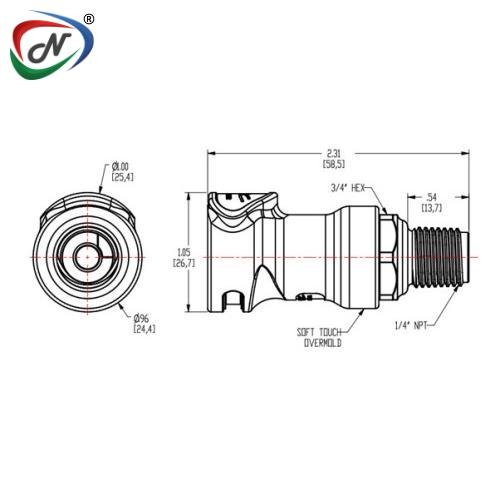

A(Height/Diameter) |
1.05 (26.7) |
|
B (Total Length) |
2.31 (58.7) |
*All measurements are in inches (millimetres) unless
otherwise noted.
Note: Image is just for ref.
Click to download : Dimensions/Design Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | NCPC182 |
| Manufacturer Code | NS4D1000406 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
Related Products

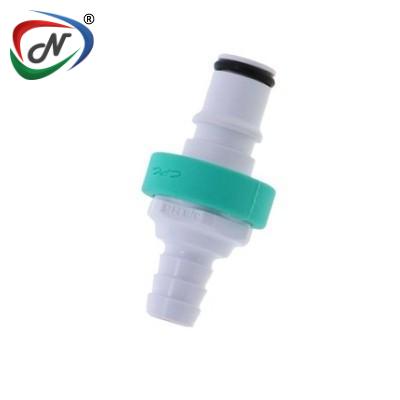

NS4D2200606 3/8 Hose Barb Valved In-Line Coupling Insert
