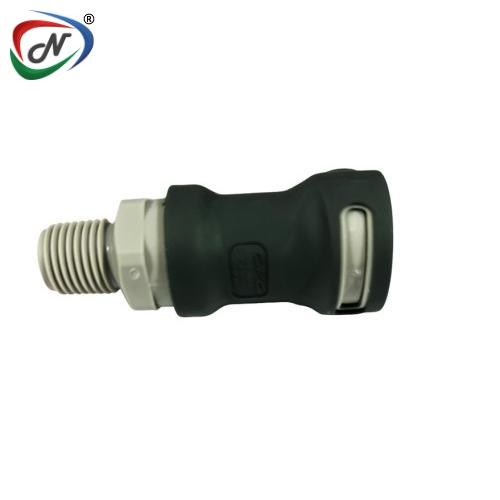

NS4D10004BSPT 1/4 BSPT Valved Coupling Body

#NSSP003197

Product Description

NS4D10004BSPT

1/4 BSPT Valved Coupling Body

Main Features:

Non-Spill Design

Colour Coding

Glass -Fitted Polypropylene

Main Benefits:

Disconnect under pressure with no spills

Instant visual differentiation of media lines

Durable & Compatible with many chemicals.

Main Specifications:

Material: Polypropylene

Material Finish: Molded Grey

Pressure Range: Vacuum to 120 psi, 8.3 bar

Color: Grey with dark grey overmold

Mounting Option: Thread

Temperature Range: 32°F - 160°F (0°C - 71°C)

Seal Options: EPDM

Valve Spring: 316 Stainless Steel

Valve Option: Valved

Body Type: Body

Spillage: <0.10 cc per disconnect, 0.10cc per connect

Weight: .0295 Ounce

Bag Qty: 25

TERMINATION	IN-LINE PIPE THREAD
TUBING/THREAD SIZE	1/4" BSPT
POLYPROPYLENE SHUTOFF	NS4D10004BSPT
A(Height/Diameter)	1.05 (26.7)
B (Total Length)	2.29 (58.2)

*All measurements are in inches (millimetres) unless otherwise noted.

Note: Image is just for ref.

Read More

Click to download : Dimensions/ Design

Medical (Core) & Thermal Industry

Additional Information

NESPL Code	NSSP003197
Manufacturer Code	NS4D10004BSPT
HSN Code	8481805090
Manufacturer	CPC Quick Connect & Disconnect Solutions
Weight	0.013kg
Type	Quick Fittings
