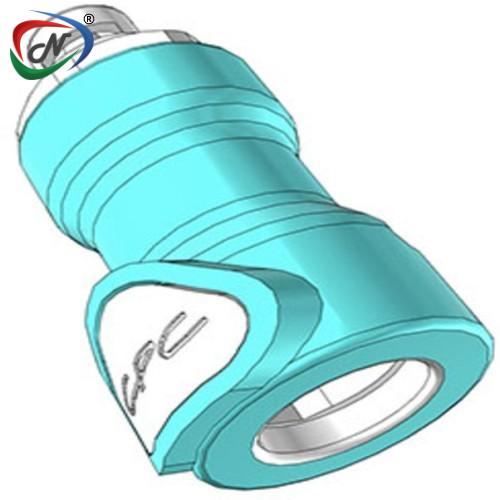

NS4D1700206 1/8 Hose Barb Valved In-Line Coupling Body

#NCPC188

Product Description

NS4D1700206

1/8 Hose Barb Valved In-Line Coupling Body

Main Features:

Non-Spill Design

Colour Coding

Glass -Fitted Polypropylene

Main Benefits:

Disconnect under pressure with no spills

Instant visual differentiation of media lines

Durable & Compatible with many chemicals.

Main Specifications:

Material: Polypropylene

Material Finish: Molded White

Pressure Range: Vacuum to 120 psi, 8.3 bar

Color: White with teal overmold

Mounting Option: Free Floating

Sterilization: Gamma

Temperature Range: 32°F - 160°F (0°C - 71°C)

Seal Options: EPDM

Valve Spring: 316 Stainless Steel

Valve Option: Valved

Body Type: Body

Spillage: <0.10 cc per disconnect, 0.10cc per connect

Weight: .0275 Ounce

Bag Qty: 25

TERMINATION	IN-LINE HOSE BARB
TUBING/THREAD SIZE	1/8" ID*
METRIC EQ.	3.2mm ID*
ABS SHUTOFF	NS4D1700206
POLYPROPYLENE SHUTOFF	NS4D17002

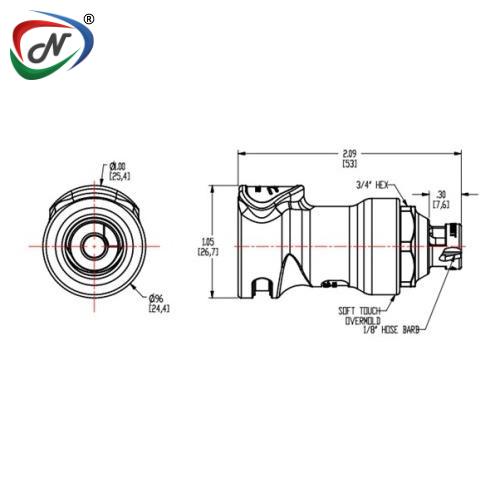

A(Height/Diameter)	1.05 (26.7)
B (Total Length)	2.09 (53.1)

All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.

* 1/8" ID (3.2mm) hose barb connection has a support shroud allowing a maximum tube OD of 1/4" (6.4mm).

Read More

Click to download : Dimensions/Design

Medical (Core) & Thermal Industry

Additional Information

NESPL Code	NCPC188
Manufacturer Code	NS4D1700206
Manufacturer	CPC Quick Connect & Disconnect Solutions
Type	Quick Fittings
