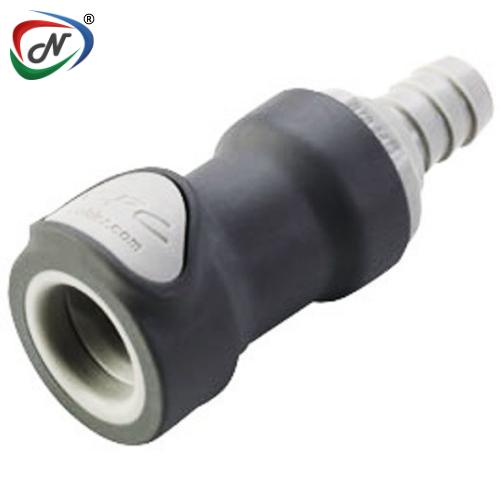

NS4D17006 3/8 Hose Barb Valved In-Line Coupling Body

#NCPC191

Product Description

NS4D17006

3/8 Hose Barb Valved In-Line Coupling Body

Main Features:

Non-Spill Design

Colour Coding

Glass -Fitted Polypropylene

Main Benefits:

Disconnect under pressure with no spills

Instant visual differentiation of media lines

Durable & Compatible with many chemicals.

Main Specifications:

Material: Polypropylene

Material Finish: Molded Grey

Pressure Range: Vacuum to 120 psi, 8.3 bar

Color: Grey with dark grey overmold

Mounting Option: Free Floating

Temperature Range: 32°F - 160°F (0°C - 71°C)

Seal Options: EPDM

Valve Spring: 316 Stainless Steel

Valve Option: Valved

Body Type: Body

Spillage: <0.10 cc per disconnect, 0.10cc per connect

Bag Qty: 25

TERMINATION	IN-LINE HOSE BARB
TUBING/THREAD SIZE	3/8" ID
METRIC EQ.	9.5mm ID
ABS SHUTOFF	NS4D1700606
POLYPROPYLENE SHUTOFF	NS4D17006
A(Height/Diameter)	1.05 (26.7)
B (Total Length)	2.34 (59.4)

*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.

Read More

Click to download : Dimensions/Design

Medical (Core) & Thermal Industry

Additional Information

NESPL Code	NCPC191
Manufacturer Code	NS4D17006
Manufacturer	CPC Quick Connect & Disconnect Solutions
Type	Quick Fittings
