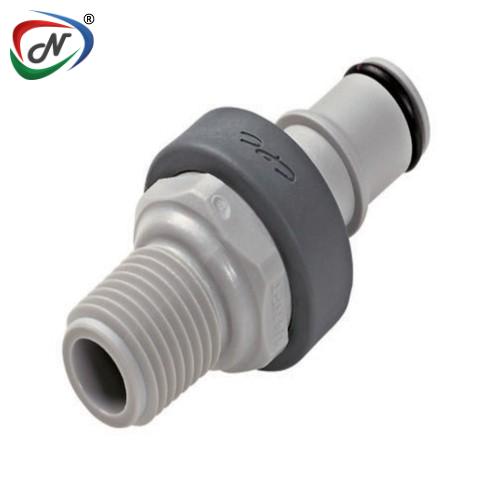

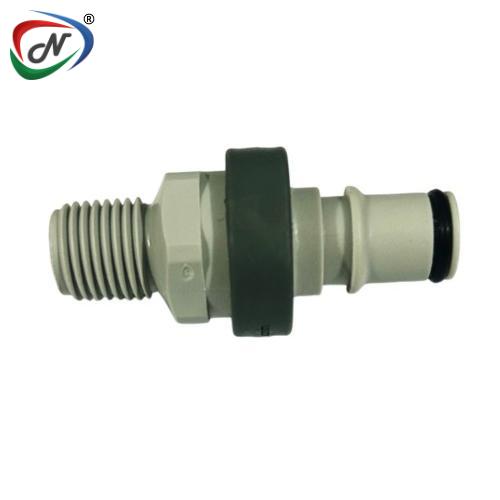

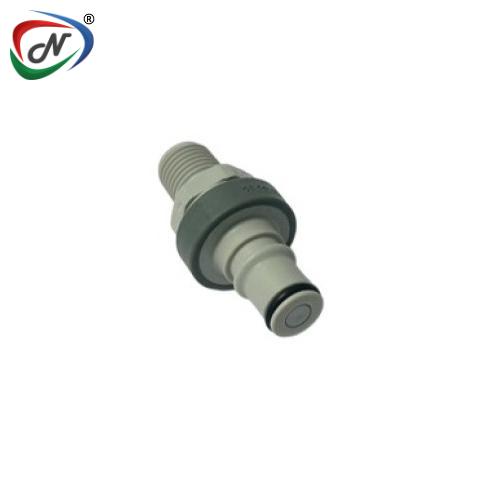

NS4D24004BSPT 1/4 BSPT Valved Coupling Insert

#NSSP003198

Product Description

NS4D24004BSPT

1/4 BSPT Valved Coupling Insert

Main Features:

Non-Spill Design

Colour Coding

Glass -Fitted Polypropylene

Main Benefits:

Disconnect under pressure with no spills

Instant visual differentiation of media lines

Durable & Compatible with many chemicals.

Main Specifications:

Material: Polypropylene

Material Finish: Molded Grey

Pressure Range: Vacuum to 120 psi, 8.3 bar

Color: Grey with dark grey overmold

Mounting Option: Free Floating

Temperature Range: 32°F - 160°F (0°C - 71°C)

Seal Options: EPDM

Valve Spring: 316 Stainless Steel

Valve Option: Valved

Body Type: Insert

Spillage: <0.10 cc per disconnect, 0.10cc per connect

Bag Qty: 25

TERMINATION	IN-LINE PIPE THREAD
TUBING/THREAD SIZE	1/4" BSPT
ABS SHUTOFF	NS4D24004BSPT06
POLYPROPYLENE SHUTOFF	NS4D24004BSPT
A(Height/Diameter)	0.96 (24.4)
B (Total Length)	1.95 (49.5)

*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.

Note: Image is just for ref.

Read More

Click to download : Dimensions/Design

Medical (Core) & Thermal Industry

Additional Information

NESPL Code	NSSP003198
Manufacturer Code	NS4D24004BSPT
HSN Code	8481805090
Manufacturer	CPC Quick Connect & Disconnect Solutions
Weight	0.008kg
Type	Quick Fittings
