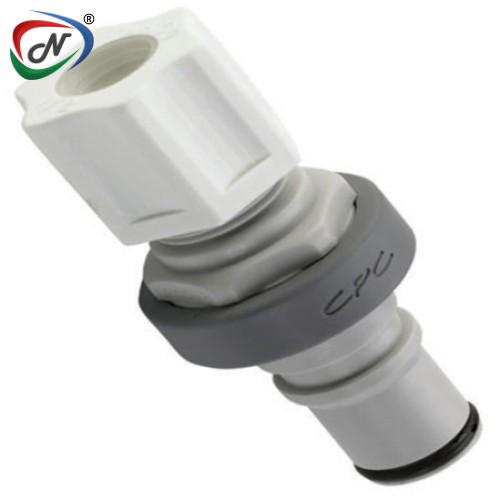

NS6D20008 1/2 JACO Valved Coupling Insert
#NSSP007064
Product Description
NS6D20008
1/2 JACO Valved Coupling Insert
Main Features:
- Non-Spill Design
- Color Coding
- Glass-filled Polypropylene
- Colder Thumb Latch
Main Benefits:
- Disconnect Under Pressure with No Spills.
- Instant Visual Differentiation of Media Lines.
- Durable & Compatible with Many Chemicals.
- One-Hand Connection and Disconnection.
Main Specifications:
- Material: Polypropylene
- Material Finish: Molded Grey
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: Gray with dark gray overmold
- Mounting Option: Thread
- Temperature Range: 32°F - 160°F (0°C - 71°C)
- Seal Options: EPDM
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Insert
- Spillage: ~0.03 cc per disconnect, 0.42 per connect
- Weight: .0542 Ounce
- Bag Qty: 10
COUPLING INSERT - Polypropylene
TERMINATION | IN-LINE COMPRESSION |
TUBING/THREAD SIZE | 1/2" OD |
METRIC EQ. | 12.7mm ID |
SHUTOFF | NS6D20008 |
A(Height/Diameter) | 1.31 (33.3) |
B (Total Length) | 3.01(76.5) |
*All measurements are in inches (millimetres) unless otherwise noted.
Click to download : CPC-NS6-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP007064 |
| Manufacturer Code | NS6D20008 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
