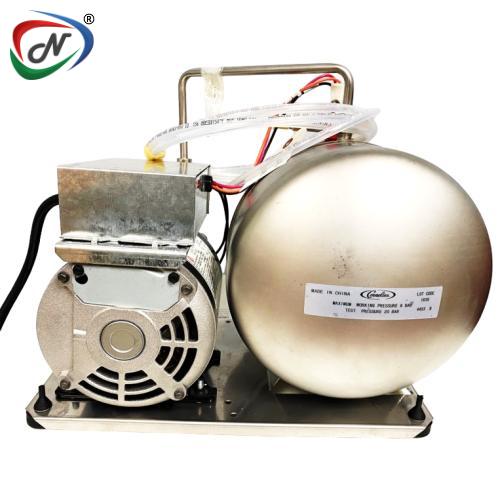

CARBONATOR EXTERNAL FAST FLOW 220V-50HZ Cornelius #496424040U

#NSSP003902

Product Description

CARBONATOR EXTERNAL FAST FLOW 220V-50HZ Cornelius #496424040U

A carbonator is a device used to carbonate water, typically for use in beverages like soda or sparkling water. It adds carbon dioxide (CO2) gas to water under pressure to create carbonated drinks. It has a fast flow rate for dispensing carbonated water. Operates on a voltage of 220 volts and a frequency of 50 Hertz.

Main Features:

  • 2.5 gallon reserve tank for carbonated water
  • Liquid level control with low voltage, solid state technology
  • Check valve prevents water from entering CO2 supply system
  • Double ball check prevents carbonated water from backing up into water supply
  • Pump equipped with thermal protector to prevent burn out from lack of water
  • Rubber feet for noise reduction during operation
  • Option for "Vent to Atmosphere" check valve available upon request.

Main Benefits:

  • Efficiency: The fast-flow design allows for quick dispensing of carbonated water, increasing operational efficiency, especially in high-demand environments such as restaurants, bars, or convenience stores.
  • Consistency: Cornelius is a well-established brand known for quality and reliability in beverage dispensing equipment.
  • Versatility: With its external design, this carbonator system may offer flexibility in installation options.
  • High Capacity: The system's fast-flow capabilities, combined with its external design, suggest that it may have a high capacity for producing and dispensing carbonated water.
  • Energy Efficiency: Operating at 220 volts and 50 Hertz, the system may offer energy-efficient performance while still providing fast and reliable operation.
  • Reliability: Cornelius equipment is known for its durability and longevity.
  • Ease of Maintenance: While specific maintenance requirements may vary, Cornelius products often feature user-friendly designs that make routine maintenance tasks, such as cleaning and servicing, straightforward.
  • Compliance and Safety: As a reputable brand, Cornelius likely adheres to industry standards and regulations for food and beverage equipment.

Main Specifications:

Width

15 1/2 " (39 cm)

Depth

11 1/4 " (29 cm)

Height

16 1/8 " (41 cm)

Carbonator Motor

1/3 H.P.

Carbonator Pump

100 GPH

Operating Pressure

125 psi maximum

Intel Connections

3/8 "

Soda Water Outlet Connections (2)

3/8 " (9.525 mm)

Electrical Requirements

115V / 50HZ or 60HZ / 7.2A

230V / 50HZ / 3.6A

Shipping Weight

30 lbs. (14 kgs.)

Overall, the Carbonator External Fast Flow system from Cornelius offers a combination of speed, reliability, and convenience, making it a suitable choice for businesses seeking efficient and high-performance carbonation solutions.

Read More

Soft Drink Industry

Additional Information

NESPL Code NSSP003902
Manufacturer Code 496411000
HSN Code 84189900
Manufacturer Cornelius
Voltage 220V- 50 Hz
Type Parts / Accessories
