Shurflo 166-200-36 - Viton Air Pump

#NSHP094

Product Description

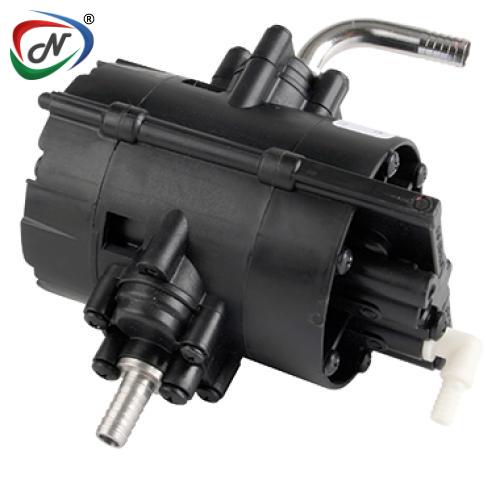

Shurflo 166-200-36 - Viton Air Pump

Available in Santoprene, Viton, BUNA and EPDM, Shurflo® 166 Air Operated Demand Pumps employ a dual diaphragm design, with a patented fast action switching mec

hanism allowing for consistent flow and pressure. They are built for the toughest pumping applications and are available in a variety of elastomers that allow them to be compatible with mild caustic or acidic fluids. The Model 166 is ideal for chemical transfer, injection and spraying.

MAIN FEATURES:

2-Chamber Dual Diaphragm

Positive Displacement

On-Demand Operation

Chemically Resistant Polypropylene Body

30 to 60 PSI [2.1- 4.1 bar]

0.6 GPM Maximum Flow

MAIN SPECIFICATIONS:

OPEN FLOW GPM:.6 GPM

HOUSING MATERIAL: Polypropylene

PORTS- LIQUID:1/4"

PORTS- AIR:1/4"

ITEM #	DESCRIPTION	DISTRIBUTOR PACKAGE	AIR PRESSURE	DIAPHRAGM
166-200-36	GP ASSY INDUST VITON	166-200-36BX	30-60 PSI	VITON
166-200-46	GP ASSY INDUST. BUNA	166-200-46BX	30-60 PSI	BUNA
166-200-56	GP ASSY INDUST EPDM	166-200-56BX	30-60 PSI	EPDM
166-200-57	GP ASSY INDUST SANTO	166-200-57BX	30-60 PSI	SANTOPRENE
