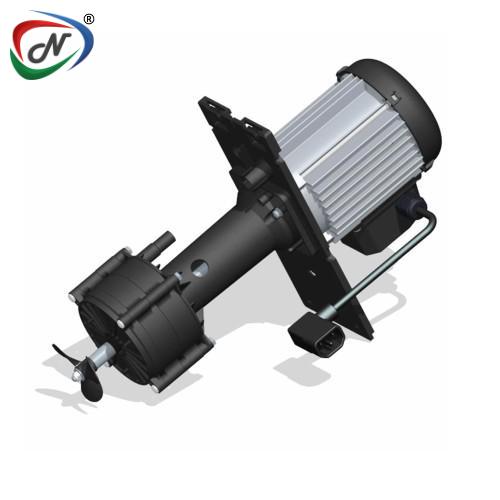

SPC18 Series Semi-Submersible Column Pump

#NSXXXXXX

Product Description

SPC18 Series Semi-Submersible Column Pump

MAIN FEATURES:

  • FLOW RATE: UP TO 18.0 LITRES/MINUTE (4.8 gallons/minute) OPEN FLOW MAXIMUM 18.0m (59') HEAD
  • DESIGNED FOR SIMPLIFIED REMANUFACTURE
  • 12MM MOTOR SHAFT WITH ANGULAR CONTACT DRIVE END BEARING FOR LONG LIFE
  • FLATTED PUMP SHAFT FOR POSITIVE IMPELLER DRIVE & EASE OF MAINTENANCE
  • FITTED WITH LIQUID INGRESS PREVENTION SYSTEM (LIPS)
  • TOP MOUNTED WITH UNIVERSAL MOUNTING PLATE
  • IPX5 MOTOR HOUSING
  • THREE STAGE PUMP HEAD – FITTED WITH 3 BLADES

APPLICATIONS:

Designed for continuous operation in chillers, coolers, vending and general water applications.

NESPL is An Exclusive Distributor of Flojet Products in India.

NESPL has been associated with Flojet for almost a decade now. We can provide High Quality SPC18 Series Semi-Submersible Column Pump. Anywhere, at the right prices as well.

SPECIFICATIONS

SPC18

Materials of Construction

PP & SS mounting plate, Glass filled ABS column and pump body, PP impellers, SS shaft, Nylon agitator

Port Type

11 or 12.5mm hose stub

Voltage

230 (VAC)

Frequency

50/60 (Hz)

Max. Liquid Temperature

-20 to 85 (°C)

Max. System Pressure

1.8 (bar)

Dimensions (H x W x D)

378.5 x 146.5 x 146.5 (mm)

Weight

3.7 (kg)



Read More

Soft Drink Industry

Additional Information

NESPL Code NSXXXXXX
Manufacturer Code SPC18
HSN Code ----
Manufacturer FLOJET / XYLEM PUMPS
Voltage 230 (VAC)
Model SPC18 Series
Weight 3.7 (kg) 8.2 (lb)
Type Pump
